M8S C08 (8108) EEE V1 brushless drone motor

Артикул 2913
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
15 737 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
100KV
Опис
  • 100KV

About M8S C08 EEE

Positioning:
• A flagship model based on the classic 8108 UAV motor architecture
• Widely used in high-end aerial photography, exploration, archaeology, and remote sensing applications
• Optimized for endurance flights ranging from 30 to 120 minutes
• Designed for 3–4 kg single-axis payloads with 27–28 inch carbon fiber propellers

Key Features:
✔ Up to 8.9 kg thrust per axis
✔ Lightweight at 252g
✔ Latest-generation EEE version for improved efficiency and reduced weight
✔ Engineered for long-endurance, stable operation across diverse missions

Perfect for:
• Drones focused on long-range aerial imaging and mapping
• Builders seeking a refined, efficient upgrade of the 8108 motor class

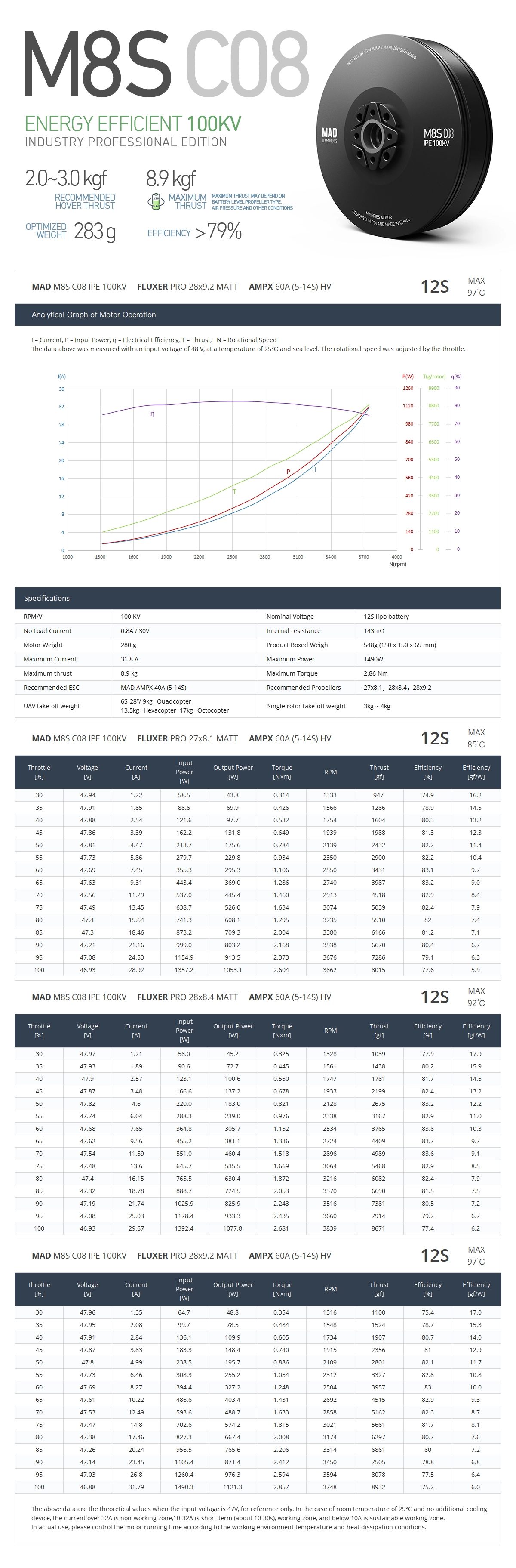

Motor Data

Motor Model MAD M8S C08 EEE V1.0 Number of pole pairs 21
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:87.3 × 26.75 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 80 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4, D:23 M4×4 Motor Balance ≤10 mg
Shaft Diameter IN: 12 mm Motor Mounting Holes D:36 M4×4
Bearing EZO 6901ZZ*2 Disruptive test 1000 V

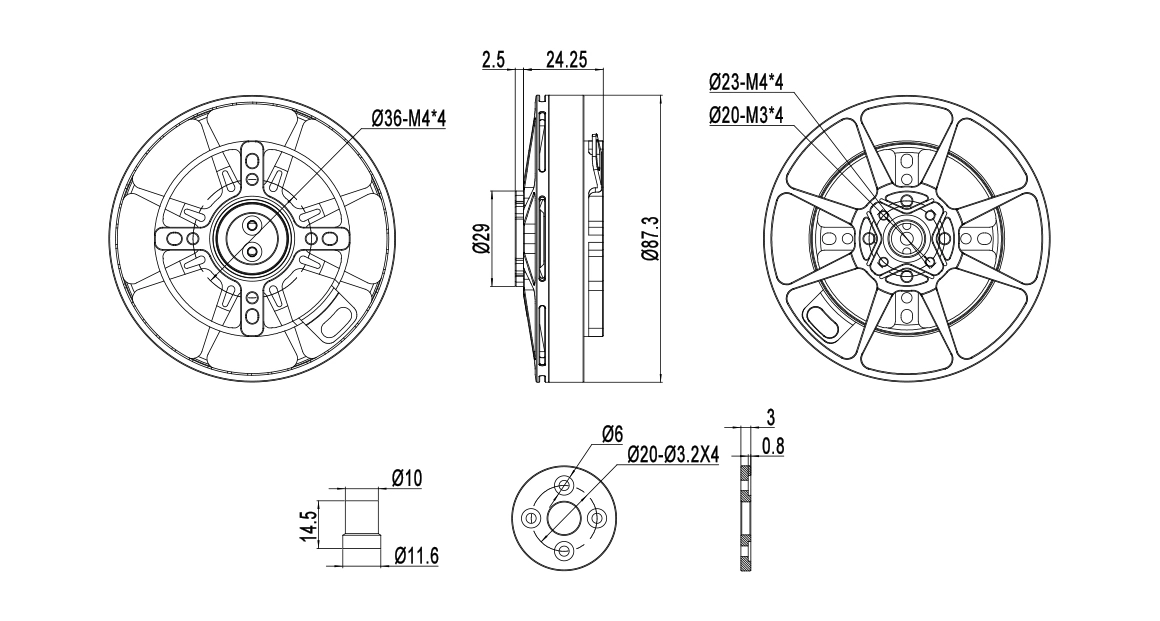

Drawing and mount holes
