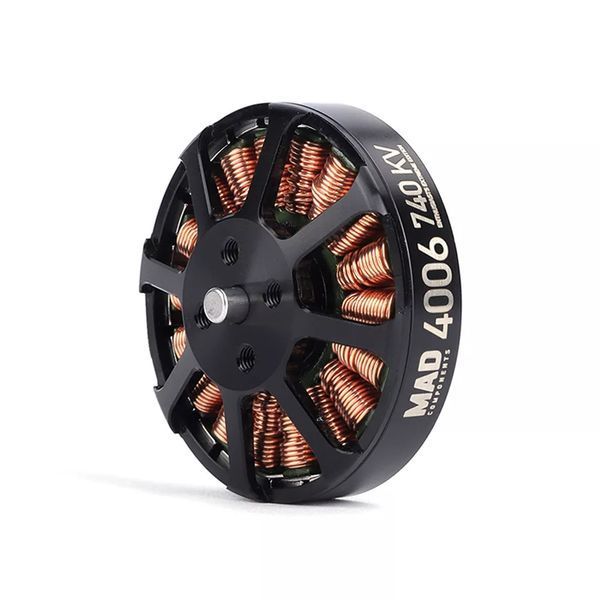

4006 EEE Drone Motor 320KV/380KV/740KV

Артикул 2934
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
3 744 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Поширити у соцмережах
Характеристики
Опція
320KV / 1pc
Опис
  • 320KV
  • 380KV
  • 740KV

About 4006 EEE

  • Payload Capacity: 550–1100g per rotor

  • Propeller Compatibility: 13–16" carbon fiber props

  • Max Thrust: 2200g (2.2kg) per motor

  • Ultralight Design: Only 72g per unit

Key Features
✔ Industry-leading thrust-to-weight ratio (30.5:1)
✔ Optimized for 6S-8S LiPo systems
✔ Low-RPM high-torque design for extended flight times
✔ Precision-balanced rotor reduces vibration to <5mg

Ideal Applications

  • Professional cinematography drones (Red Komodo, Sony FX3 payloads)

  • Industrial inspection platforms (LiDAR/thermal imaging systems)

  • Advanced FPV racing (hybrid cinewhoop builds)

  • Agricultural monitoring (multispectral sensor arrays)
    (Need custom KV options or bulk pricing? Contact us!)

Motor Data
Motor Model MAD 4006 EEE V1.0 Number of pole pairs 12
Stator Anticorrosive Varnished wire Degree 150°C
Motor Size D:44.5 × 24.1 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 150 mm 18# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 4 mm Motor Mounting Holes D:19 M3×4 D:25 M3×4
Bearing NSK 694ZZMC3 *2 Disruptive test 500 V

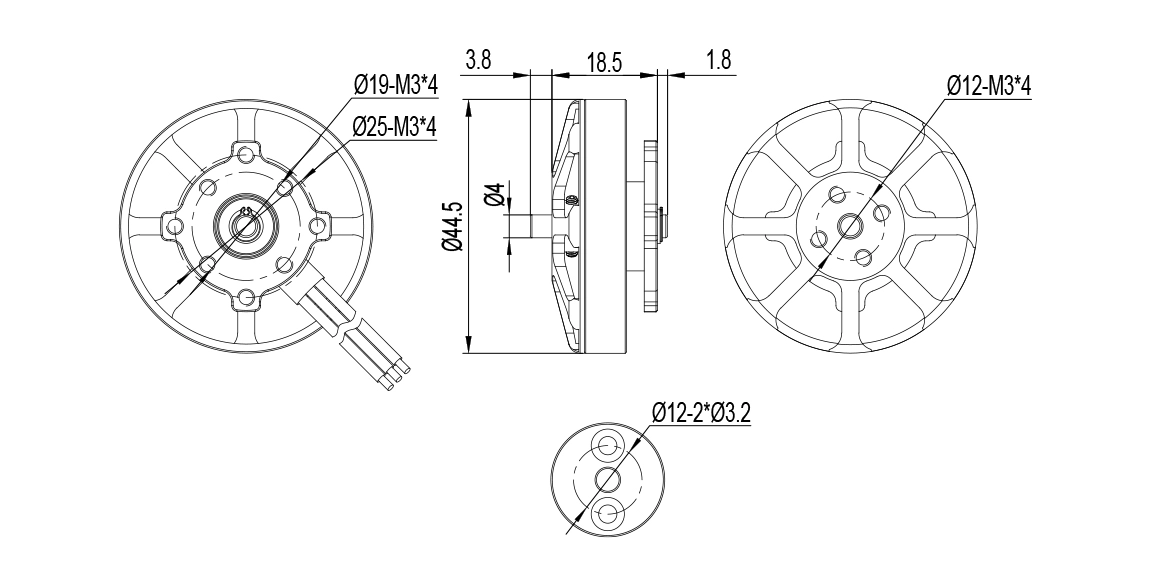

Drawing and mount holes

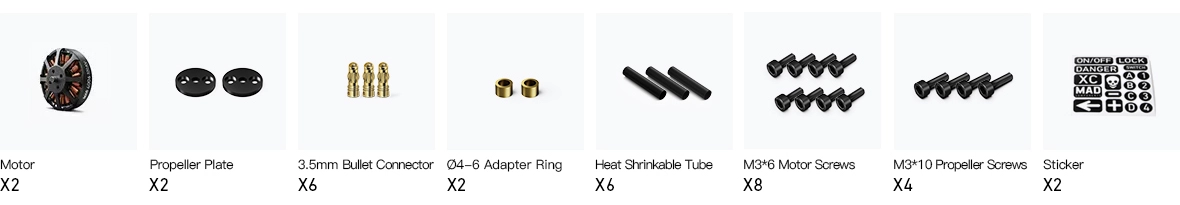

Accessories
