BSC 4218 Drone Motor

Артикул 3031
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
2 633 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Поширити у соцмережах
Характеристики
Опція
330KV
Опис
  • 330KV
  • 400KV
  • 560KV

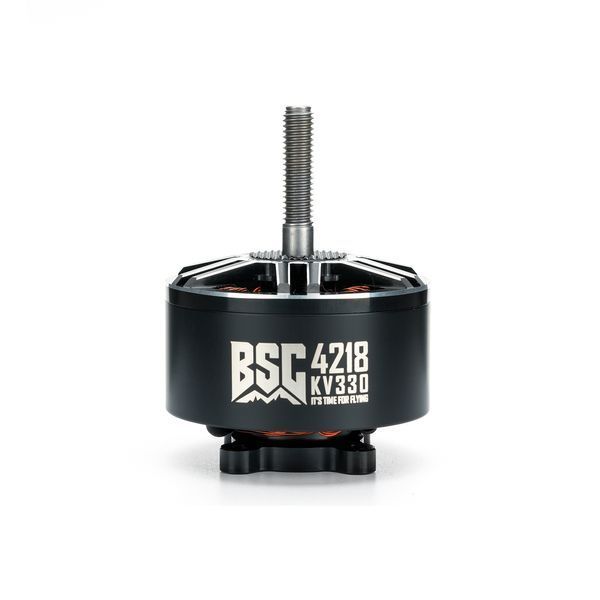

The MAD BSC 4218 is a precision-engineered brushless motor designed for industrial multirotors, long-range UAVs, and professional drone platforms requiring reliable power with 15-inch propellers.Available in three KV configurations to match your mission profile:

Key Specifications

  • Ultra-Low Rotor Imbalance (≤5 mg) — Precision-balanced for smooth, vibration-free flight. Ideal for aerial photography, mapping, and sensor-sensitive payloads.
  • Three KV Options: 330 / 400 / 560 KV — Choose the configuration that matches your mission: maximum endurance, balanced payload capacity, or higher thrust output.
  • 12N14P Electromagnetic Design — Delivers consistent, linear torque across the full throttle range for stable control in heavy-lift applications.
  • 14AWG High-Current Silicone Cable (400 mm) — Rated for high-load currents with flexible silicone sheathing, ensuring reliable power delivery without bottlenecking.
  • 15-inch Propeller Ready — M6 nut mount with 6 mm shaft fits most professional 13–16 inch propeller hubs directly. No adapters required.
  • Complete Mounting Kit Included — Comes with propeller plate, M4×12 mm screws (×4), and M6 nut. Mount and fly without sourcing additional hardware.

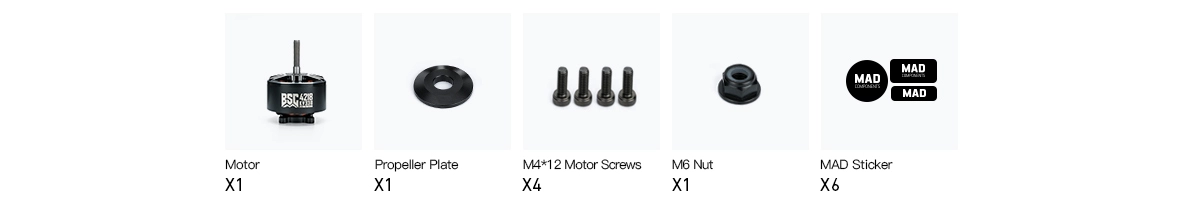

Packing Include

  • Propeller Plate ×1 · M4×12mm Motor Screws ×4 · M6 Nut ×1 · MAD Sticker ×6

Matching Guide

Motor Data
Motor Model MAD BSC4218 V1.0 Motor Number of slots 12N14P

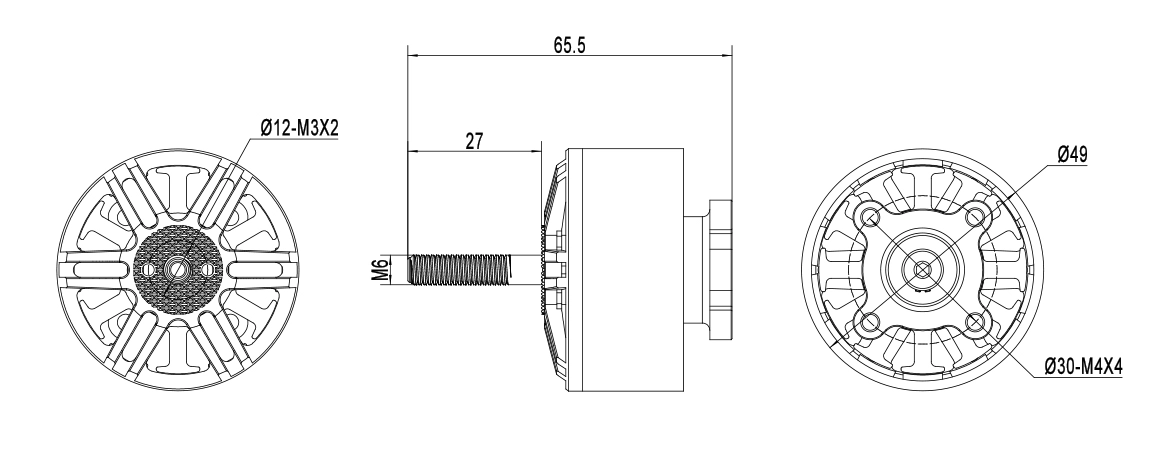

Motor Size D:49 × 65.5 mm Rotor Balance ≤5 mg
Propeller Mounting Holes M6 Nut Motor Balance D:30 M4×4
Shaft Diameter IN: 6 mm Cable Length 400 mm 14# Awg (Black) silicone
Additional Accessories Propeller Plate *1, M4 *12mm *4 Motor Screws, M6 Nut*1, MAD Sticker*6



Q: What propeller size is the MAD BSC 4218 compatible with?

A: The BSC 4218 is optimized for 13–16 inch propellers, with best performance on 15-inch props. The M6 nut mount accommodates most professional propeller hubs in this range.

Q: What battery voltage (S) does the BSC 4218 support?

A: The BSC 4218 is compatible with 6S–12S LiPo battery systems. The 330KV variant is best suited for 8–12S setups; the 560KV variant works well with 6S.

Q: What is the difference between the 330KV, 400KV, and 560KV versions?

A: Lower KV (330) = higher torque at lower RPM — ideal for maximum flight endurance. Higher KV (560) = faster RPM for more aggressive thrust response. Choose based on payload weight and flight mission type.
