2806 EEE Drone Motor 400KV/650KV

Артикул 3041
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
2 574 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
400KV
Опис
  • 400KV
  • 650KV

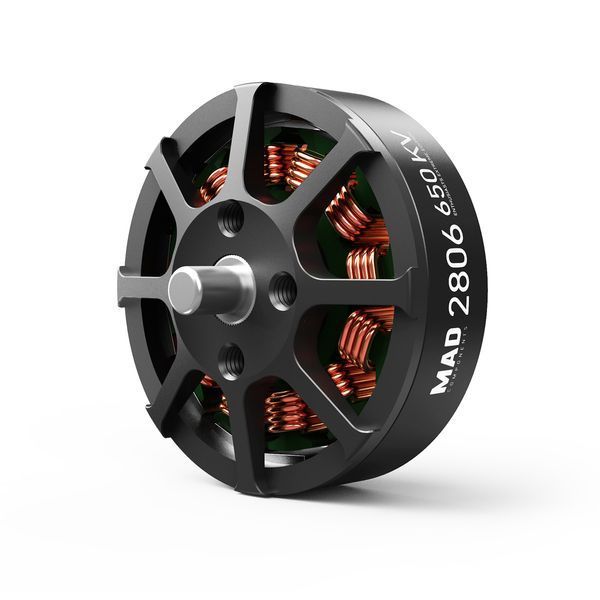

About MAD 2806 EEE V1.0

High-Endurance Motor for Aerial Survey & Mapping

✔ 6S Voltage – Optimized for long-endurance flights
✔ Ultra-Lightweight – Advanced hollow design for weight reduction & fast heat dissipation
✔ Precision Stator – 12N14P multi-slot design for smooth torque & high efficiency
✔ Aerospace-Grade Material – 6061-T6 aluminum alloy for superior strength & safety
✔ Optimized Magnetic Circuit – Simulated flux density & magnetic containment for low power loss
✔ Premium EZO Bearings – Imported high-durability bearings for stable rotation & impact resistance

Ideal for:

  • Professional aerial photography & surveying

  • Long-range mapping & exploration

  • training quadcopters.

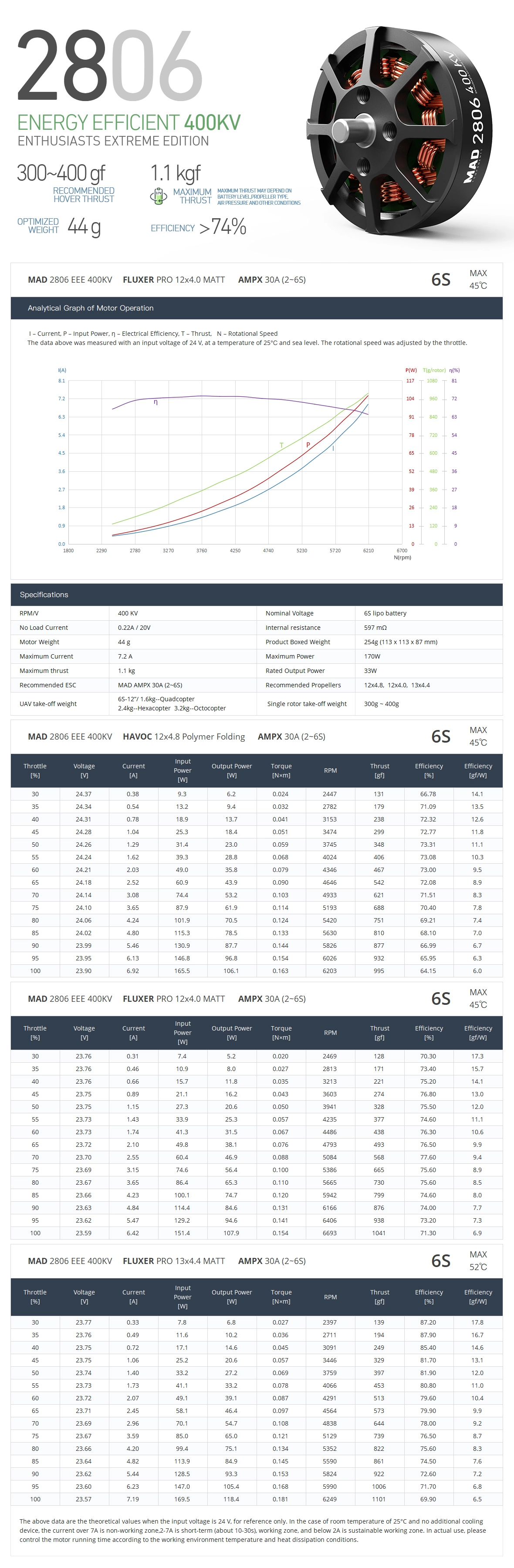

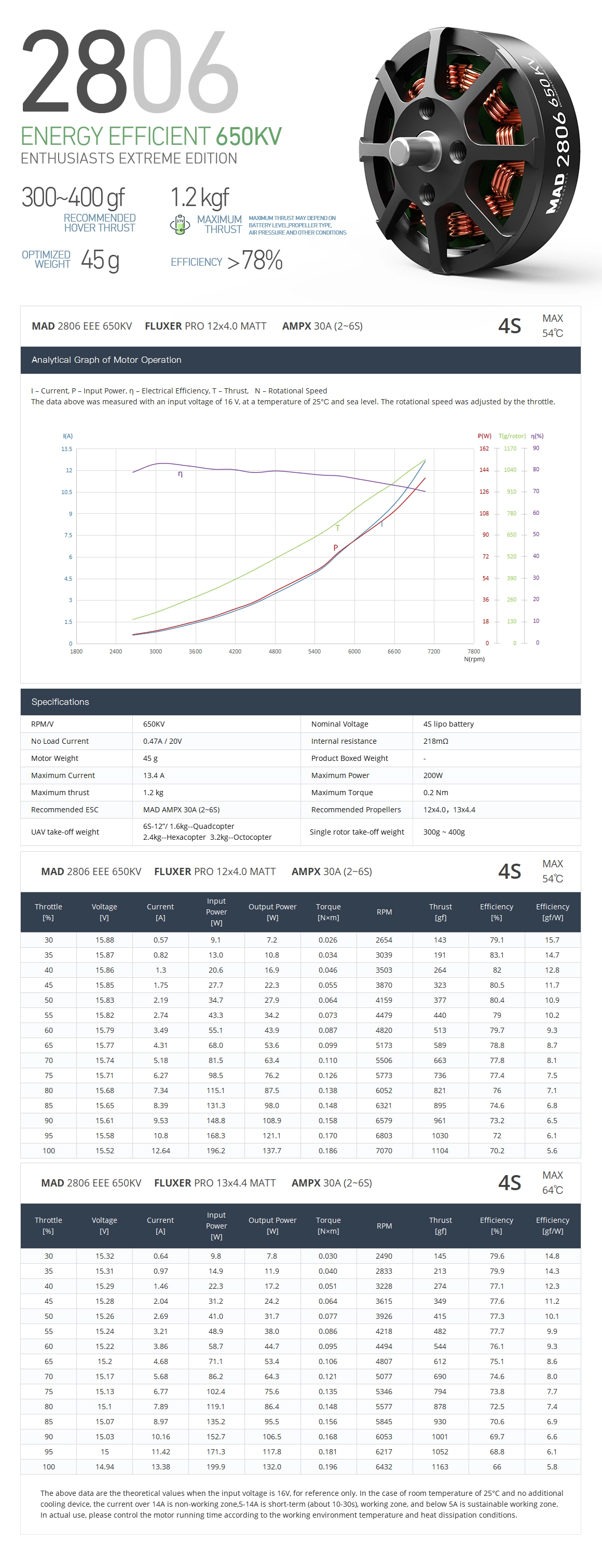

Motor Data
Motor Model MAD 2806 EEE V1.0 Number of pole pairs 7
Stator Size High-quality Silicon steel sheets/Hight-temperature coating resistant to 180℃ Varnished wire Degree 180°C
Motor Size D:35 × 19.8mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 50 mm (extended Enameled wires)
Centrifugal Heat Dissipation Independent Rotor Balance ≤3 mg
Propeller Mounting Holes D:12 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 4mm Motor Mounting Holes D:19 M3×4
Bearing NSK 694ZZMC3*1 Disruptive test 500 V
Additional Accessories Propeller Plate *2, Prop Adaper *1, 04-6Adapter Ring *1, M3*omm *4 Motor Screws, M3*8mm *4 Prop Adaper Screws,
M3*8mm *2 Propeller Screws, Sticker*1

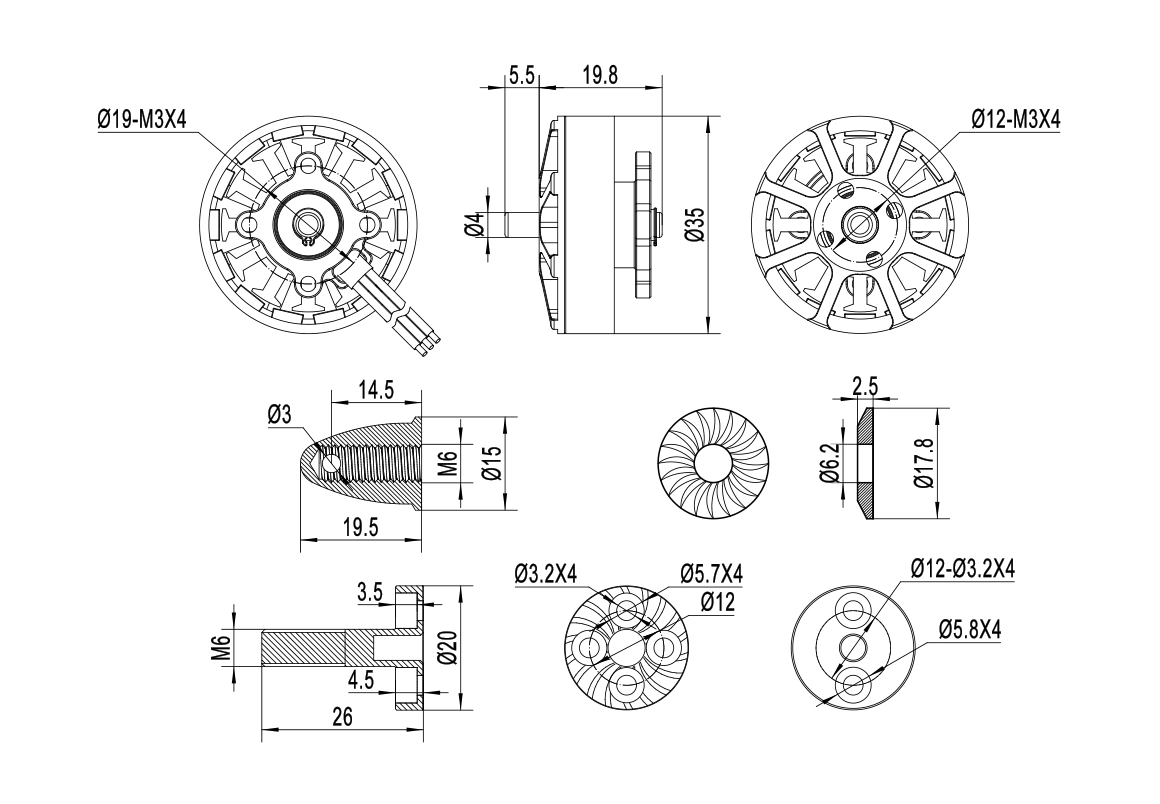

Drawing and mount holes
