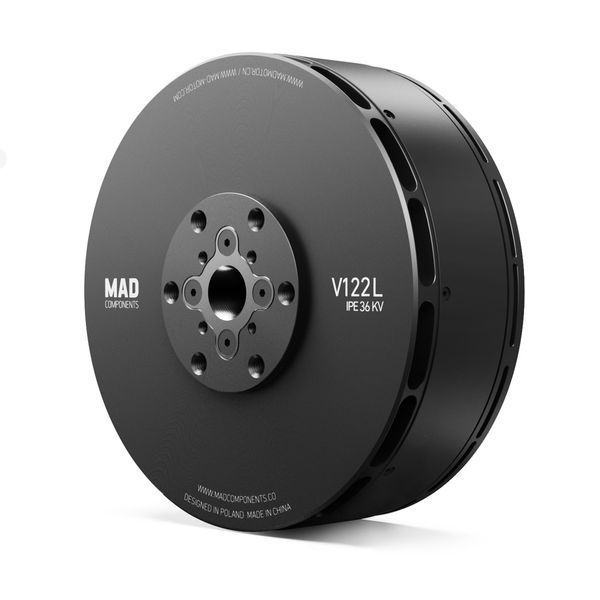

V122L eVTOL Drone Motor

Артикул 3202
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
39 137 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
36KV
Опис
  • 36KV
  • Solution

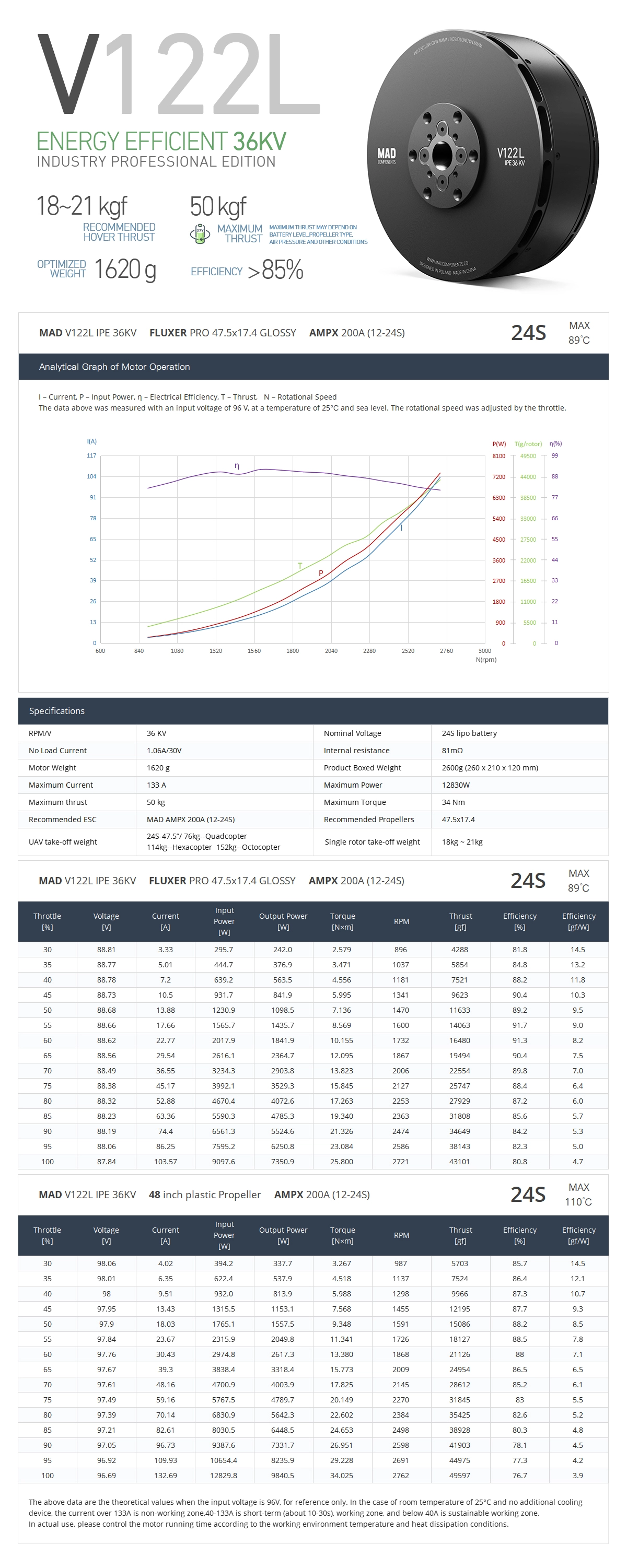

Motor Data

Motor Model MAD V122L IPE V2.0 Number of pole pairs 19
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:144.6 × 53 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:50 M6×6 Motor Balance ≤20 mg
Shaft Diameter IN: 20 mm Motor Mounting Holes D:50 M6×4
Bearing 6904ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

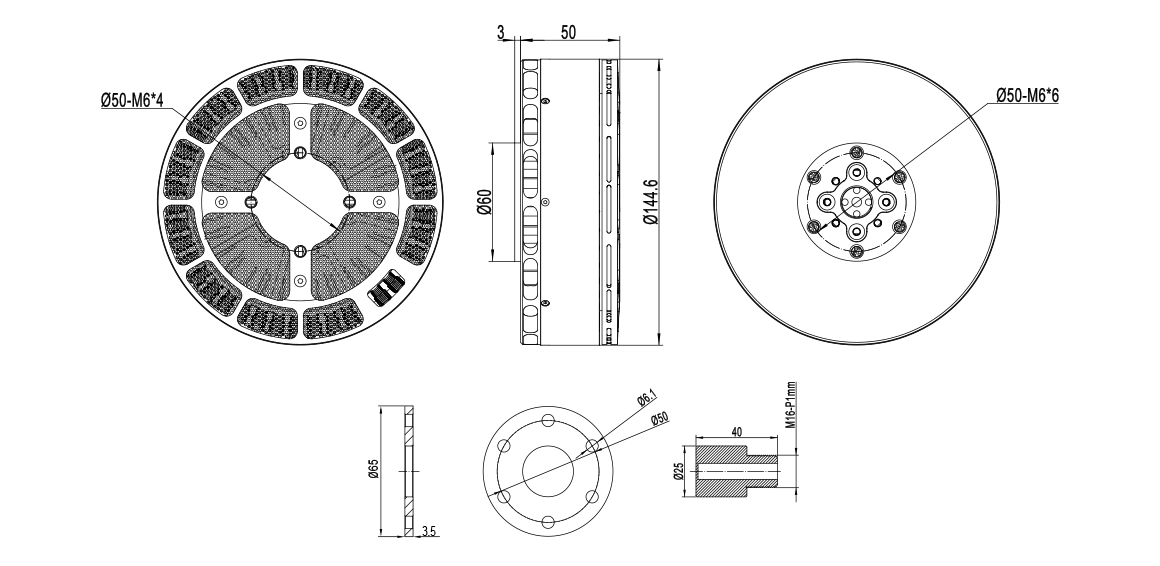

Drawing and mount holes

___________________________________________________________________________________________________________________________

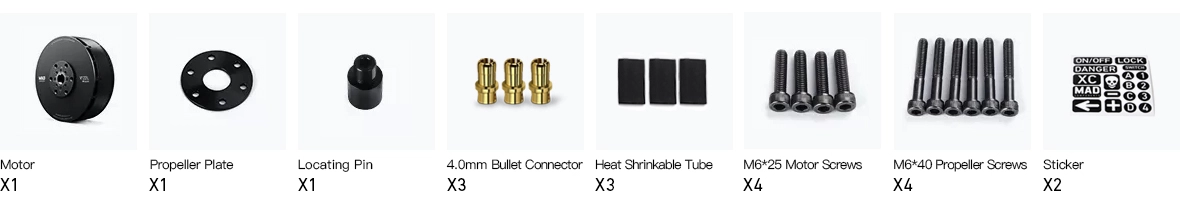

Accessories

SOLUTION
VTOL Motor/KV VTOL Prop VTOL ESC
MAD V122L IPE 36KV Fluxer VTOL 40x13.1/42x14 MAD AMPX 120A(12-24S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 axes)
24S(4.3V/S)/84-52V 16kg ~ 20kg 76kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
