Antimatter M6C08 EEE Drone Motor

Артикул 3266
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
6 377 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Поширити у соцмережах
Характеристики
Опція
130KV
Опис
  • 130KV
  • 180KV
  • 260KV
  • 320KV

About the Antimatter M6C08 EEE Brushless Drone Motor

Configure your next multirotor with the MAD Antimatter M6C08 EEE. Four KV options let you compare motor speed constants within the same M6C08 EEE platform when selecting your propulsion components.

Key specifications for your build

  • KV options: 130KV, 180KV, 260KV, 320KV.

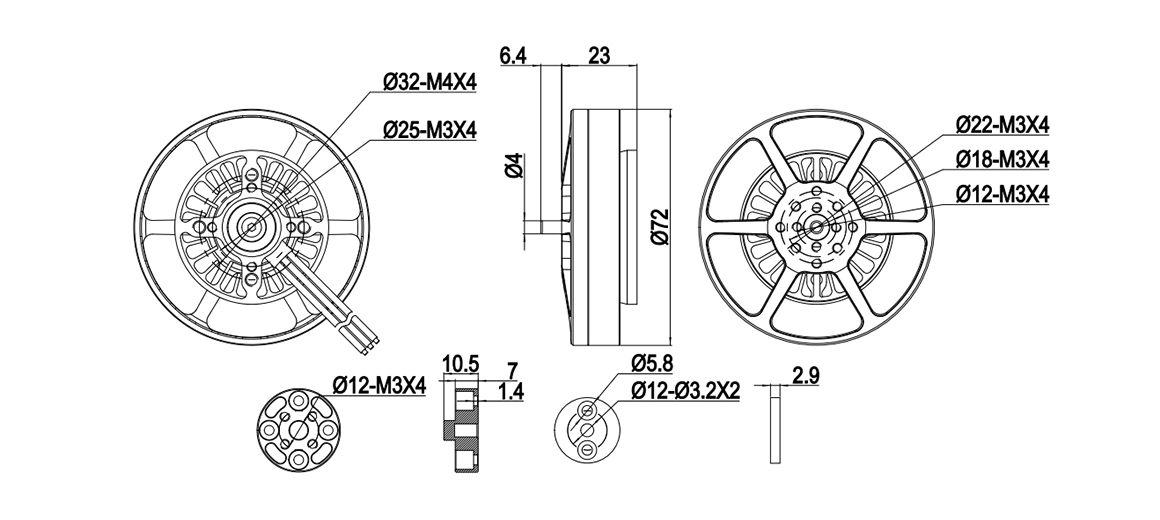

  • Motor dimensions: D:72 × 29.4 mm. Check the drawing below for installation clearance.
  • Protection: Rain protection.
  • Motor leads: 60 mm 16# Awg(Black) silicone.

Select a complete propulsion setup

Match the selected KV version with a suitable battery voltage, ESC and propeller. Assess thrust and current using the test data for that exact combination; KV alone does not determine payload capacity or flight time. Check the motor and propeller mounting patterns before installation.

Compare other AN M6 series motors or explore drone ESCs and propellers to plan your system.

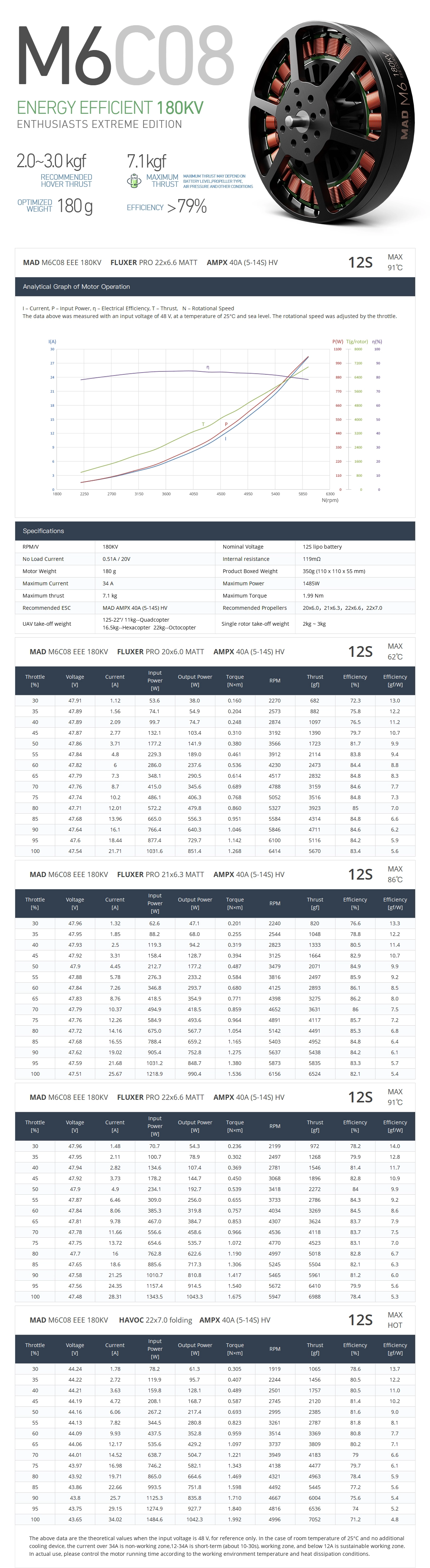

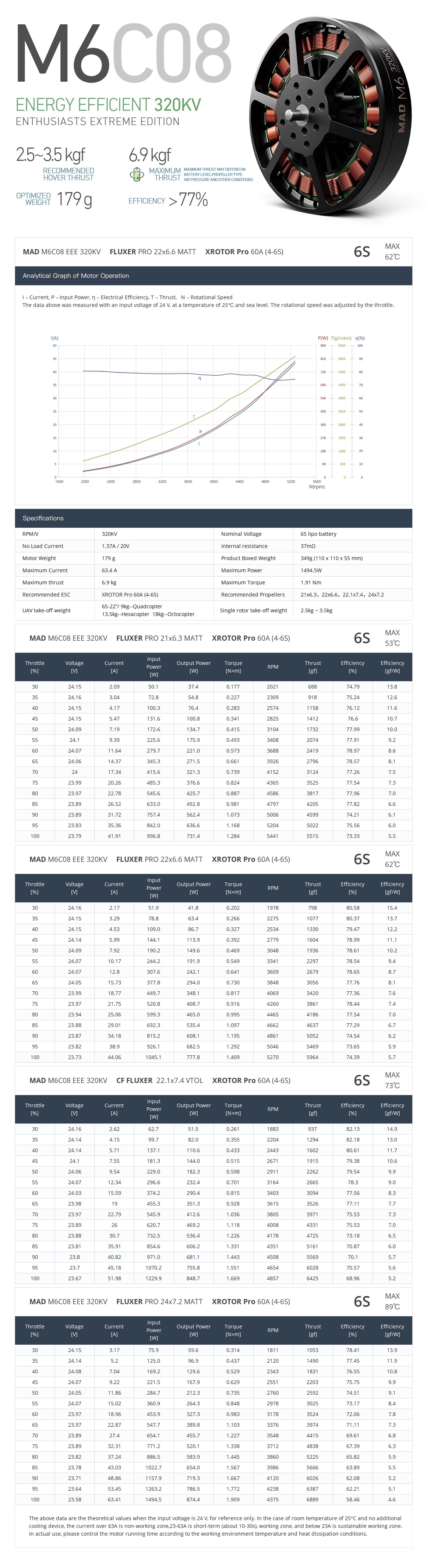

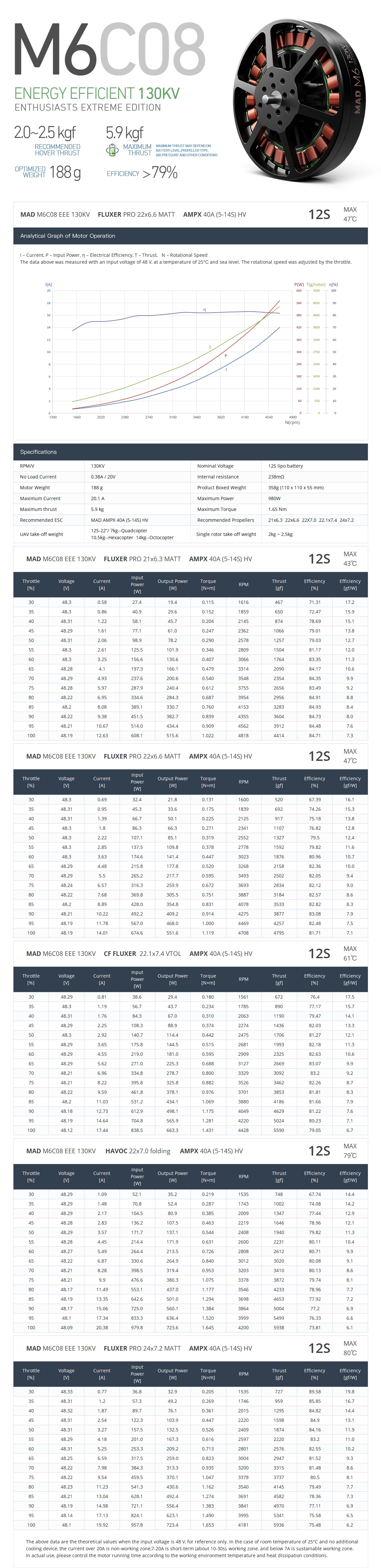

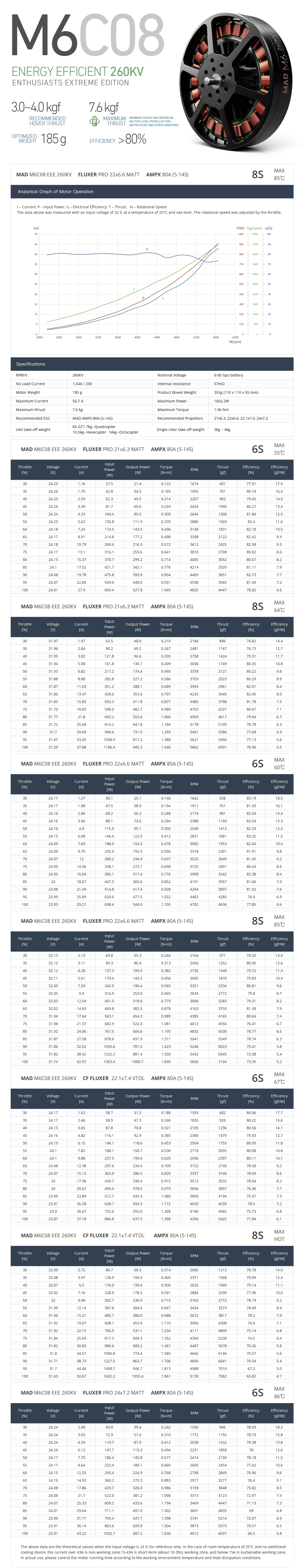

Motor Data
Motor Model MAD M6C08 EEE V2.0 Number of pole pairs 14
Stator Size Anticorrosive Varnished wire Degree 180°C
Motor Size D:72 × 29.4 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 60 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4,D:18 M3×4,D:22 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 6mm Motor Mounting Holes D:25 M3×4, D:32 M4×4
Bearing 696ZZ*2 Disruptive test 500 V

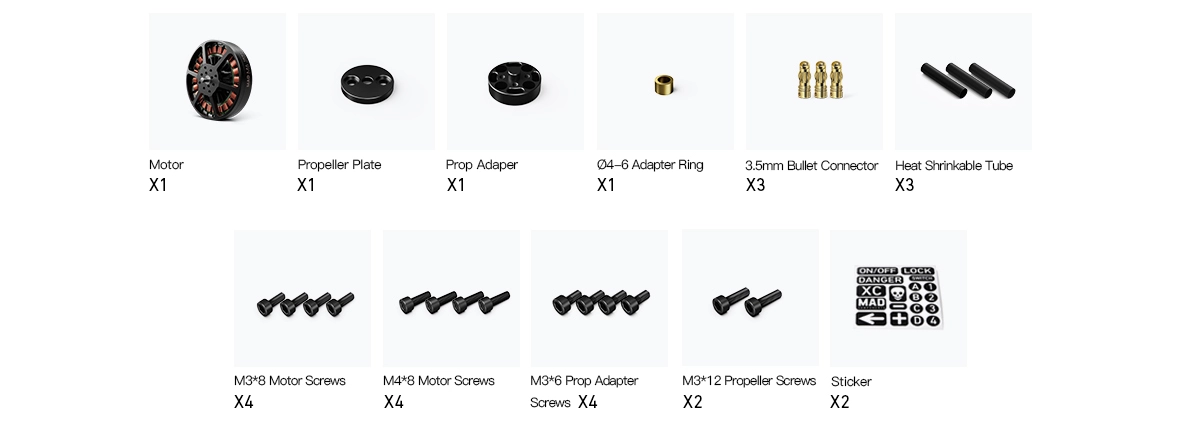

Accessories
