Antimatter M6C08 IPE V3 Drone Motor

Артикул 3270
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
6 728 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Поширити у соцмережах
Характеристики
Опція
130KV
Опис
  • 130KV
  • 180KV
  • 260KV
  • 320KV

About the Antimatter M6C08 IPE V3 Brushless Drone Motor

The MAD Antimatter M6C08 IPE V3 is a brushless UAV motor for builders comparing several KV options in the M6C08 format. Choose from 130KV, 180KV, 260KV and 320KV to suit your planned propulsion setup.

Key specifications for your build

  • KV options: 130KV, 180KV, 260KV, 320KV.
  • Motor dimensions: D:72 × 31.4 mm. Check the drawing below for installation clearance.
  • Protection: IP45.
  • Motor leads: 150 mm 16# Awg(Black) silicone.

Select a complete propulsion setup

Match the selected KV version with a suitable battery voltage, ESC and propeller. Assess thrust and current using the test data for that exact combination; KV alone does not determine payload capacity or flight time. Check the motor and propeller mounting patterns before installation.

Compare other AN M6 series motors or explore drone ESCs and propellers to plan your system.

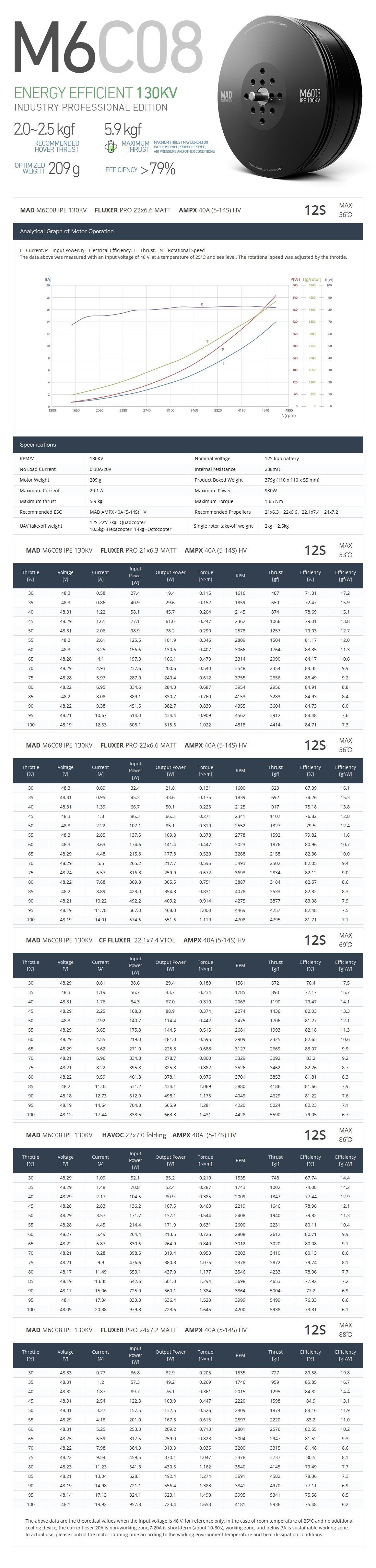

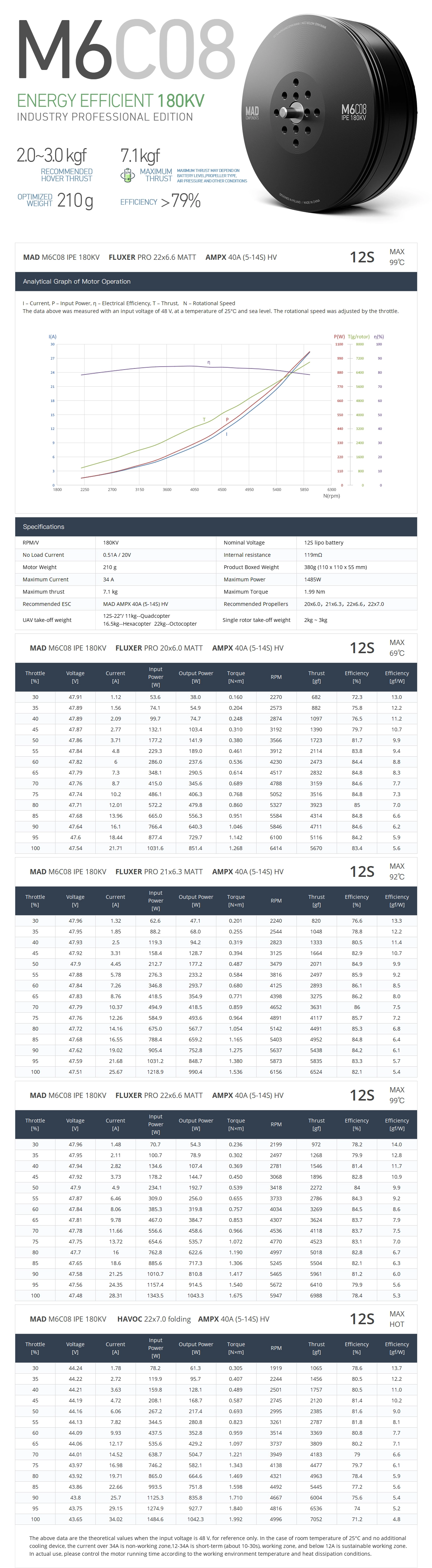

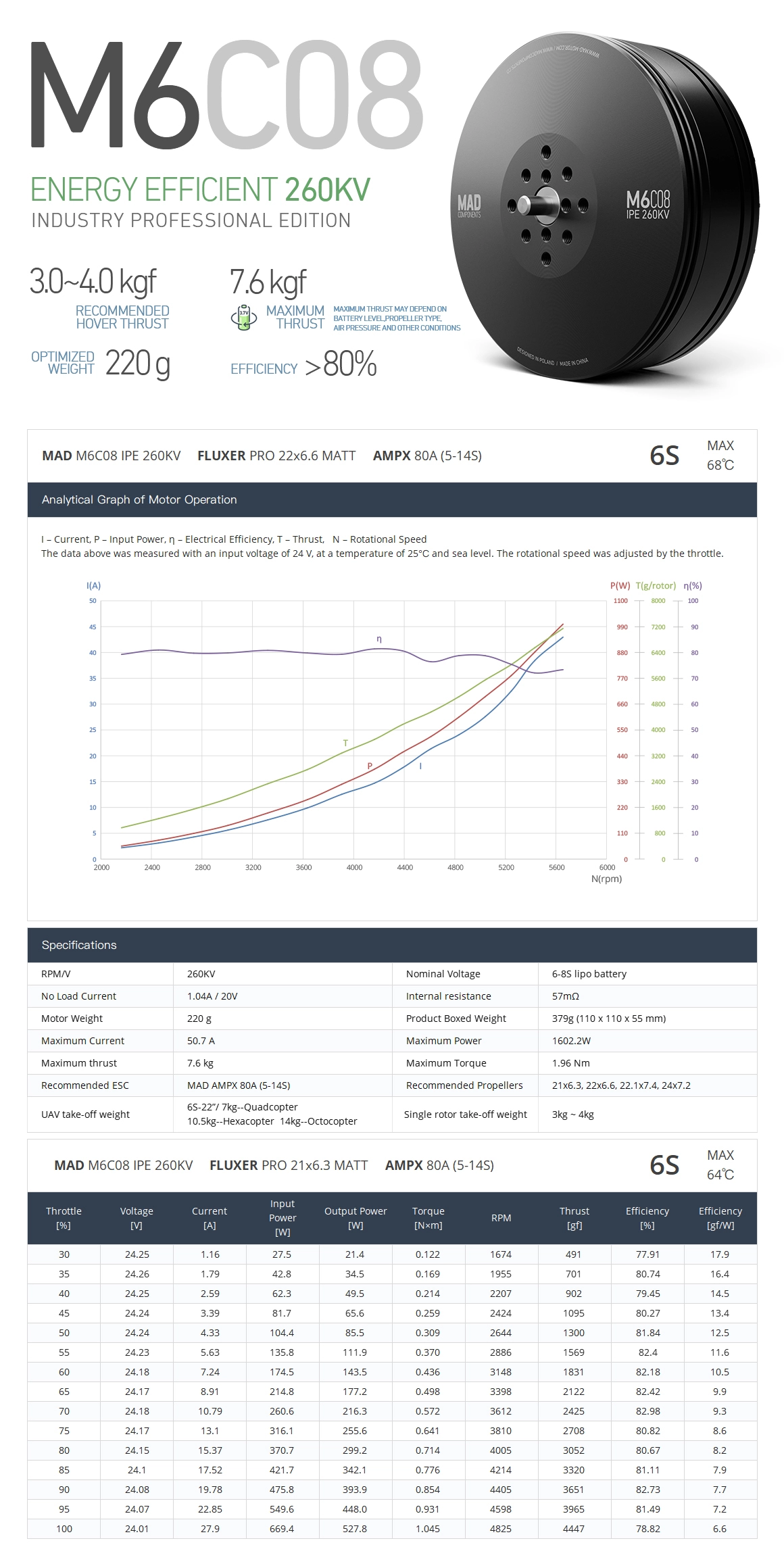

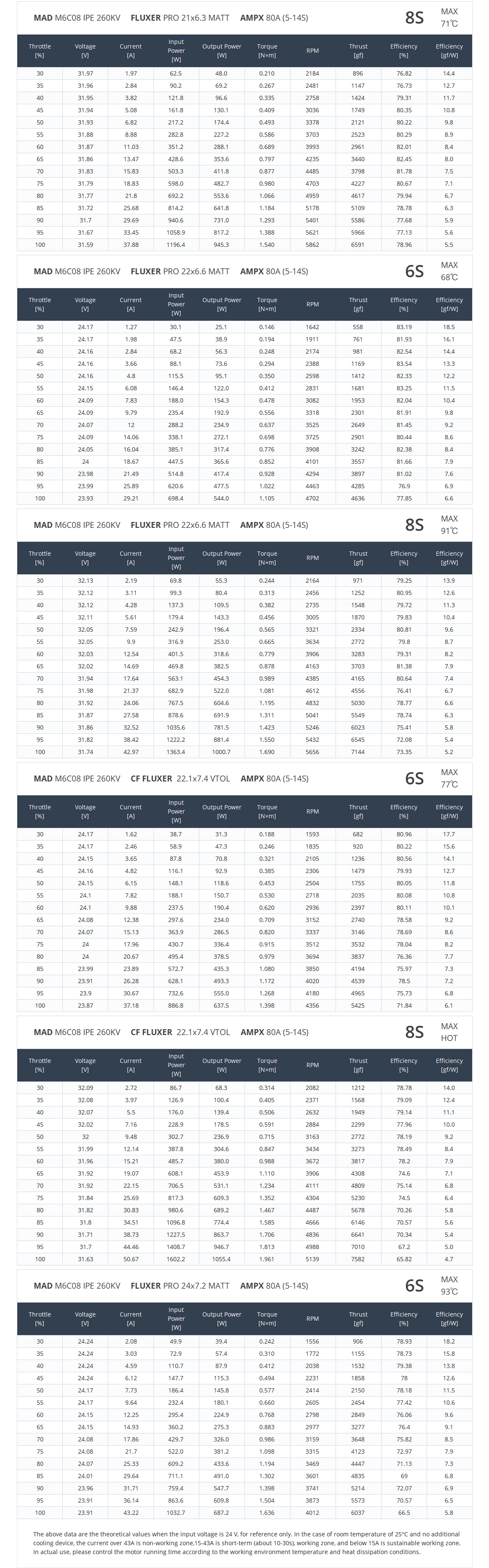

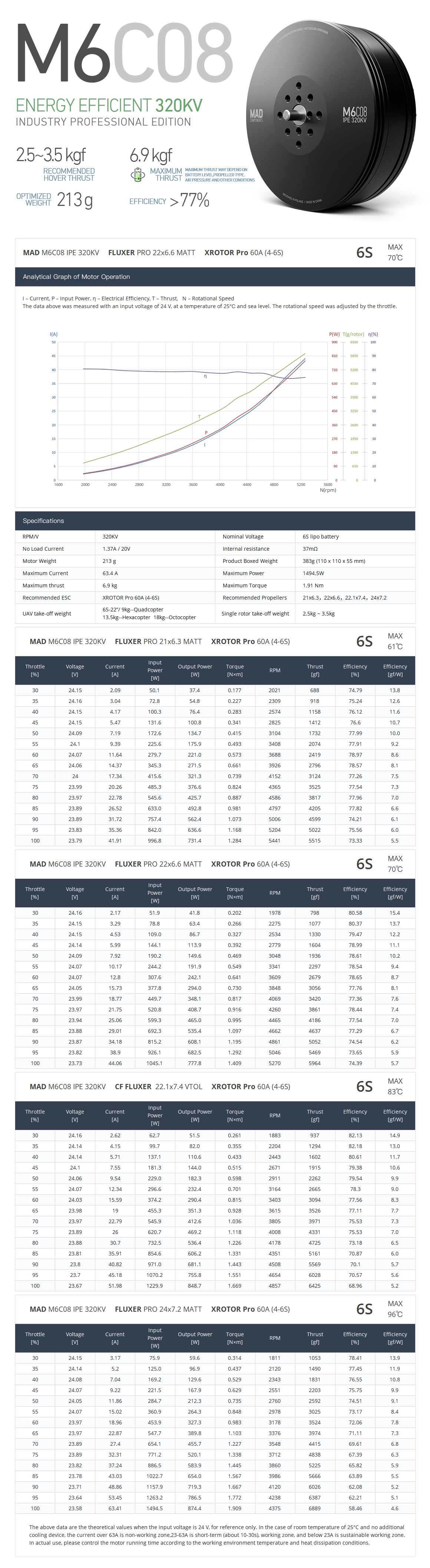

Motor Data
Motor Model MAD M6C08 IPE V3.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:72 × 31.4 mm Magnet Degree 150°C
Degree of Protection IP45 Cable Length 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4,D:18 M3×4,D:22 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:25 M3×4
Bearing 696ZZ*2 Disruptive test 500 V

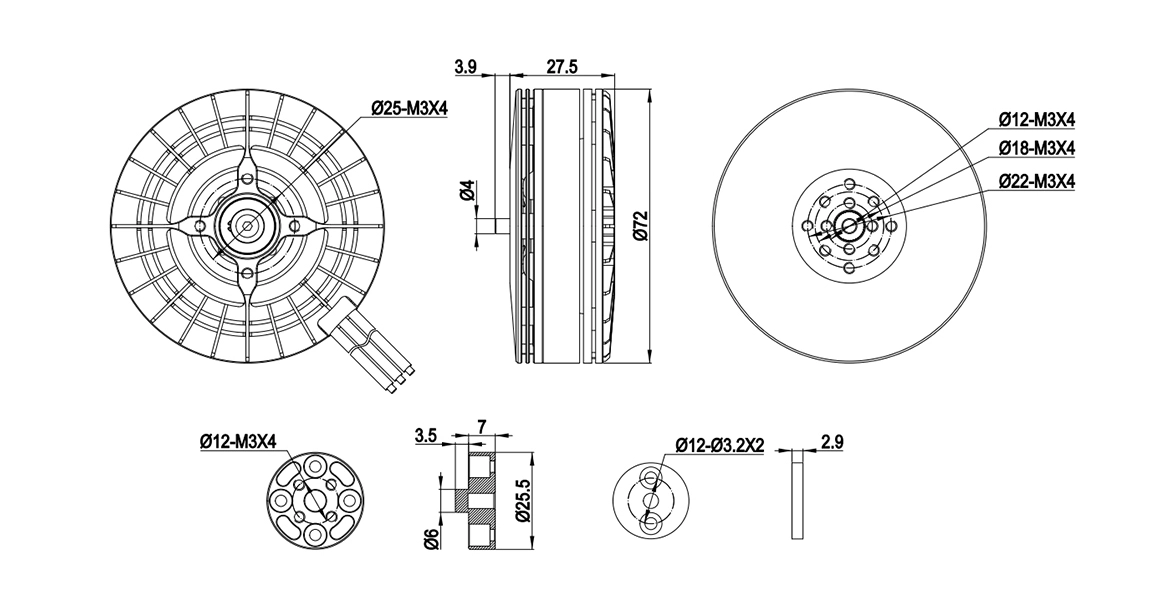

Drawing and mount holes
