Antimatter M6C10 EEE Drone Motor

Артикул 3274
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
6 962 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Поширити у соцмережах
Характеристики
Опція
150KV
Опис
  • 150KV
  • 200KV
  • 250KV
  • 300KV

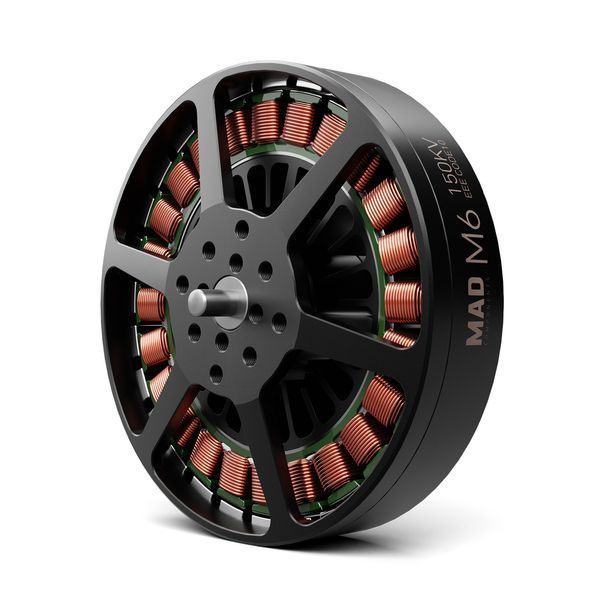

About the Antimatter M6C10 EEE Brushless Drone Motor

The MAD Antimatter M6C10 EEE offers four KV versions in the AN M6 brushless motor range. Use its mechanical specifications and model-specific performance data to develop a propulsion setup for your multirotor aircraft.

Key specifications for your build

  • KV options: 150KV, 200KV, 250KV, 300KV.
  • Motor dimensions: D:72 × 31.4 mm. Check the drawing below for installation clearance.
  • Protection: Rain protection.
  • Motor leads: 60 mm 16# Awg(Black) silicone.

Select a complete propulsion setup

Match the selected KV version with a suitable battery voltage, ESC and propeller. Assess thrust and current using the test data for that exact combination; KV alone does not determine payload capacity or flight time. Check the motor and propeller mounting patterns before installation.

Compare other AN M6 series motors or explore drone ESCs and propellers to plan your system.

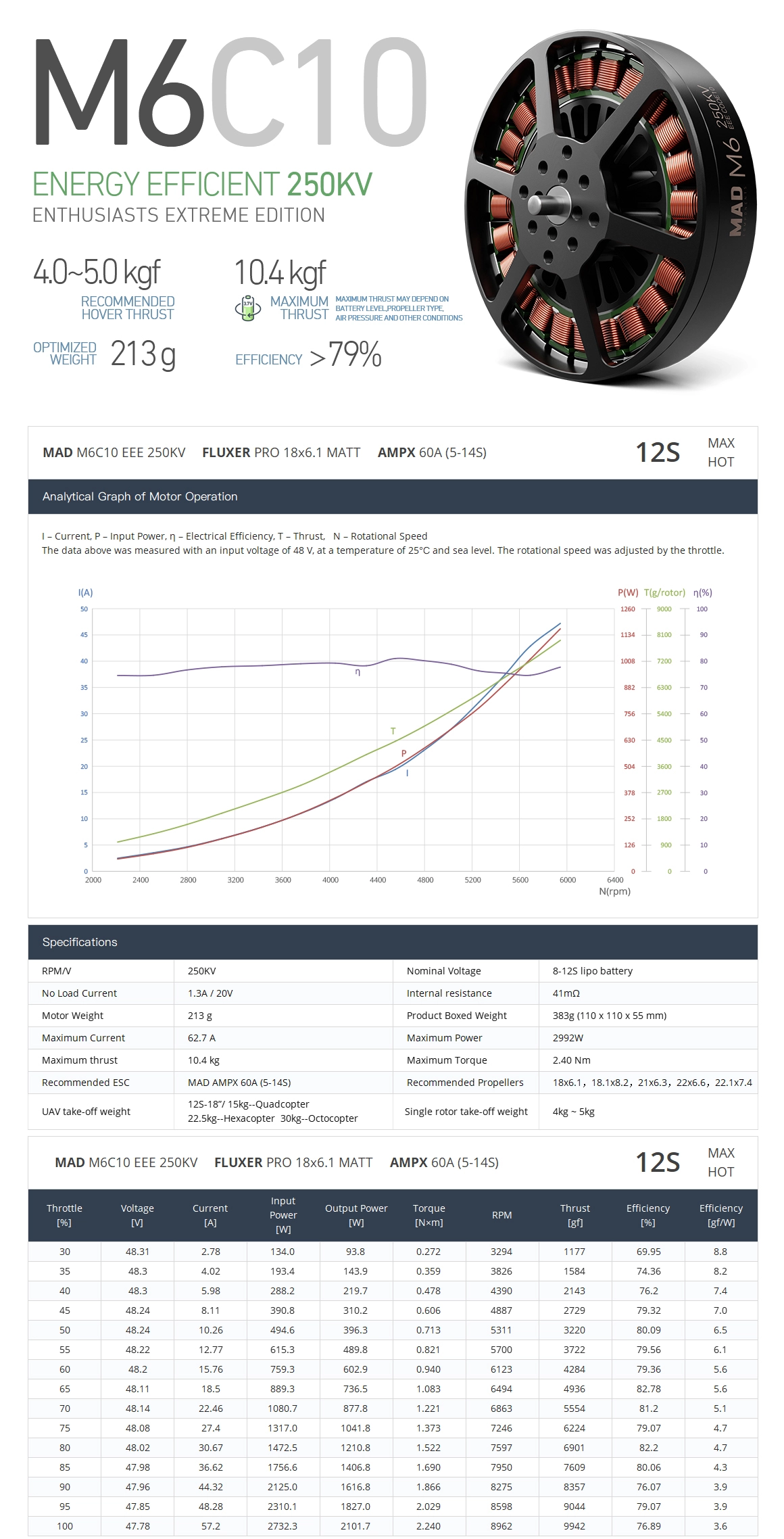

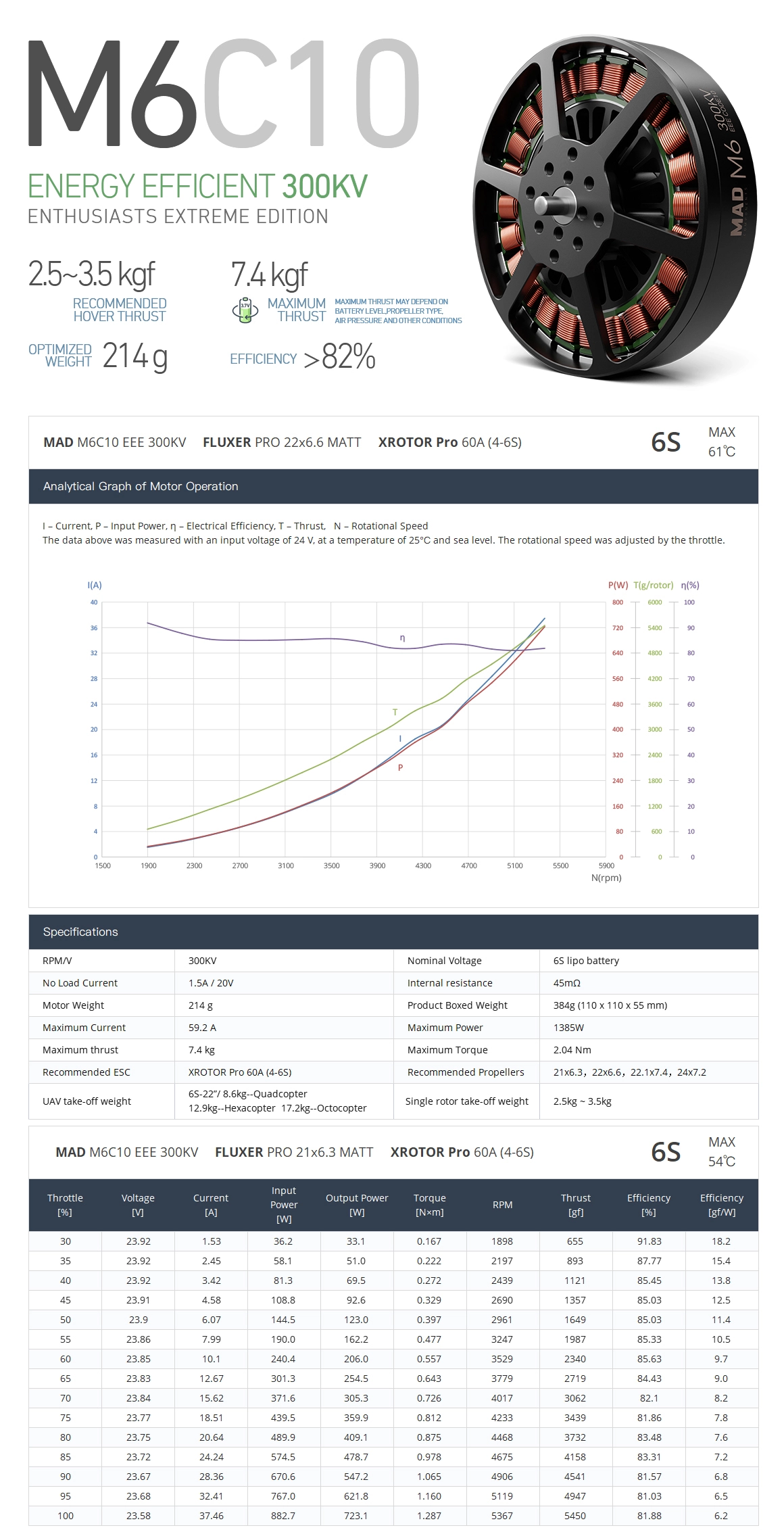

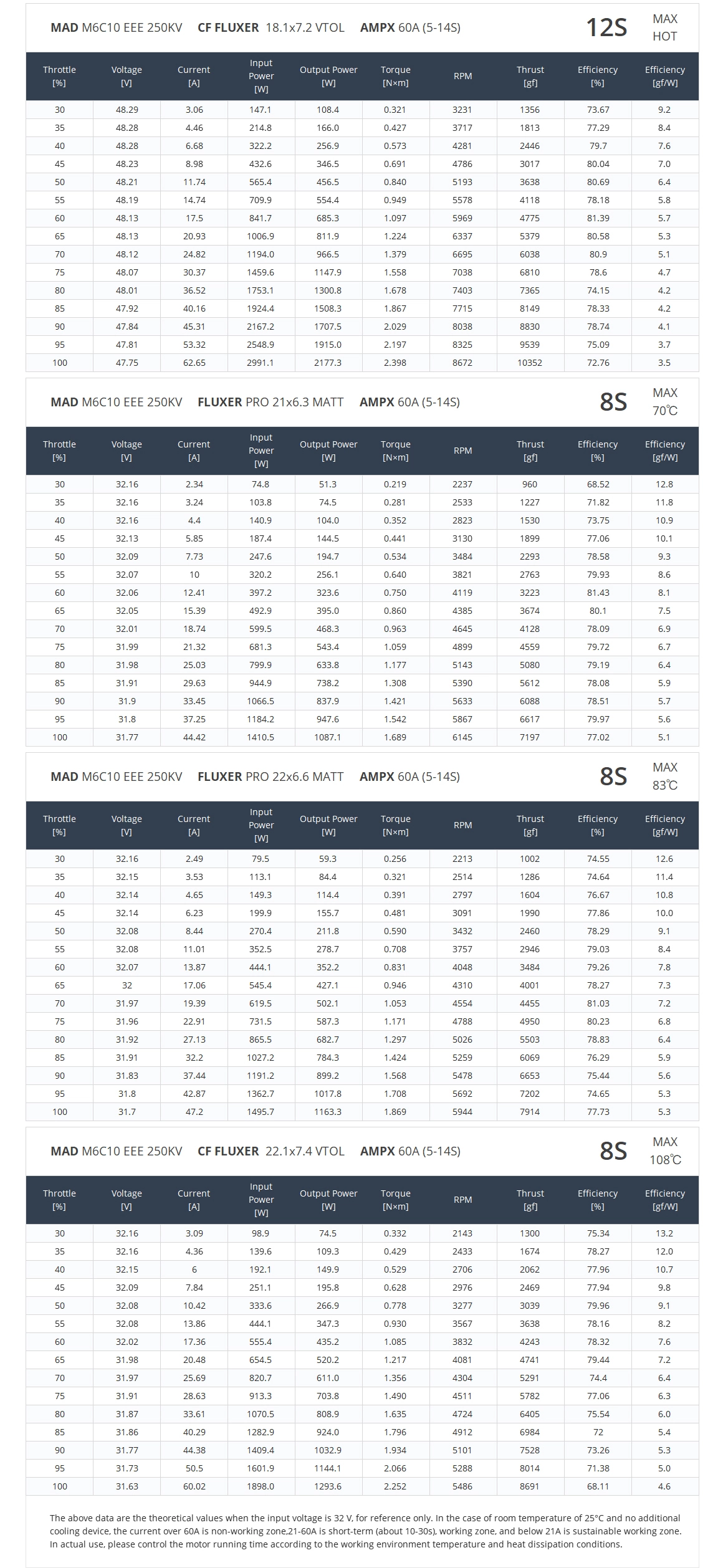

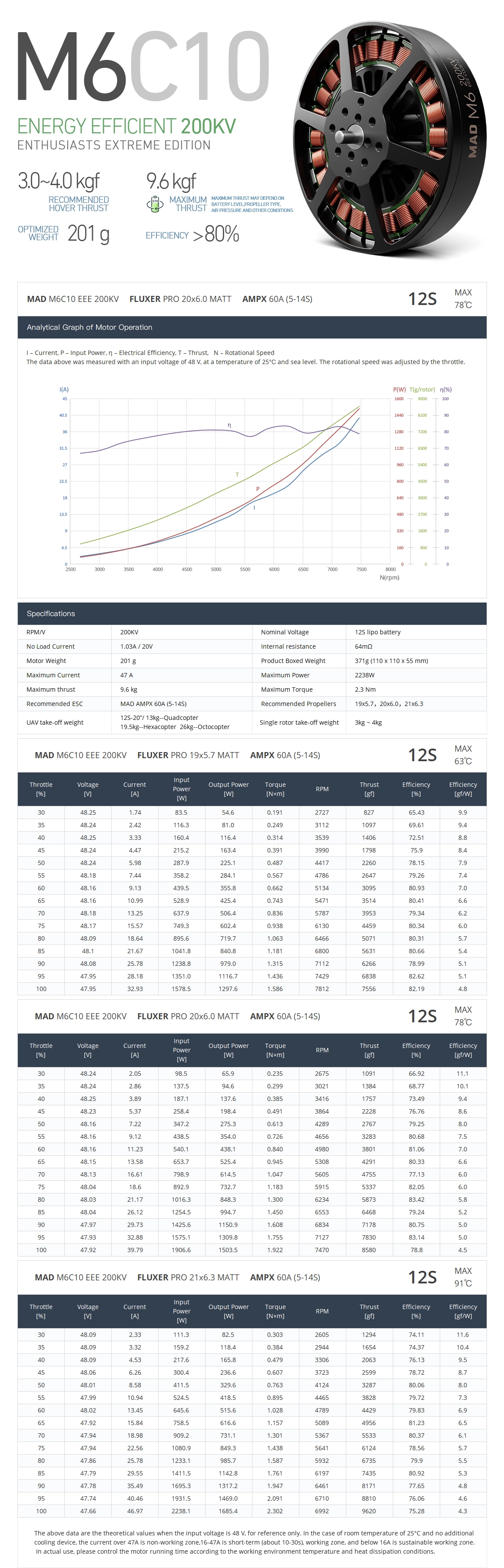

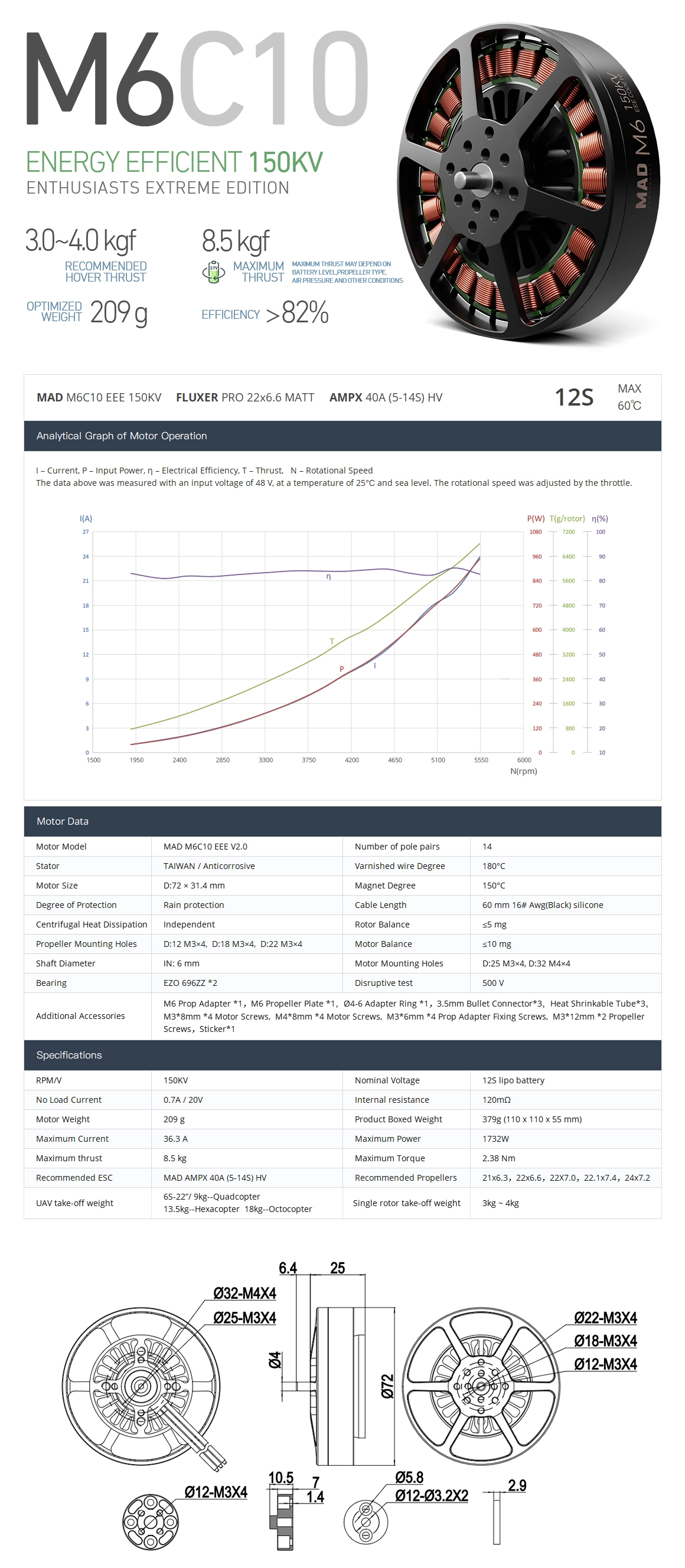

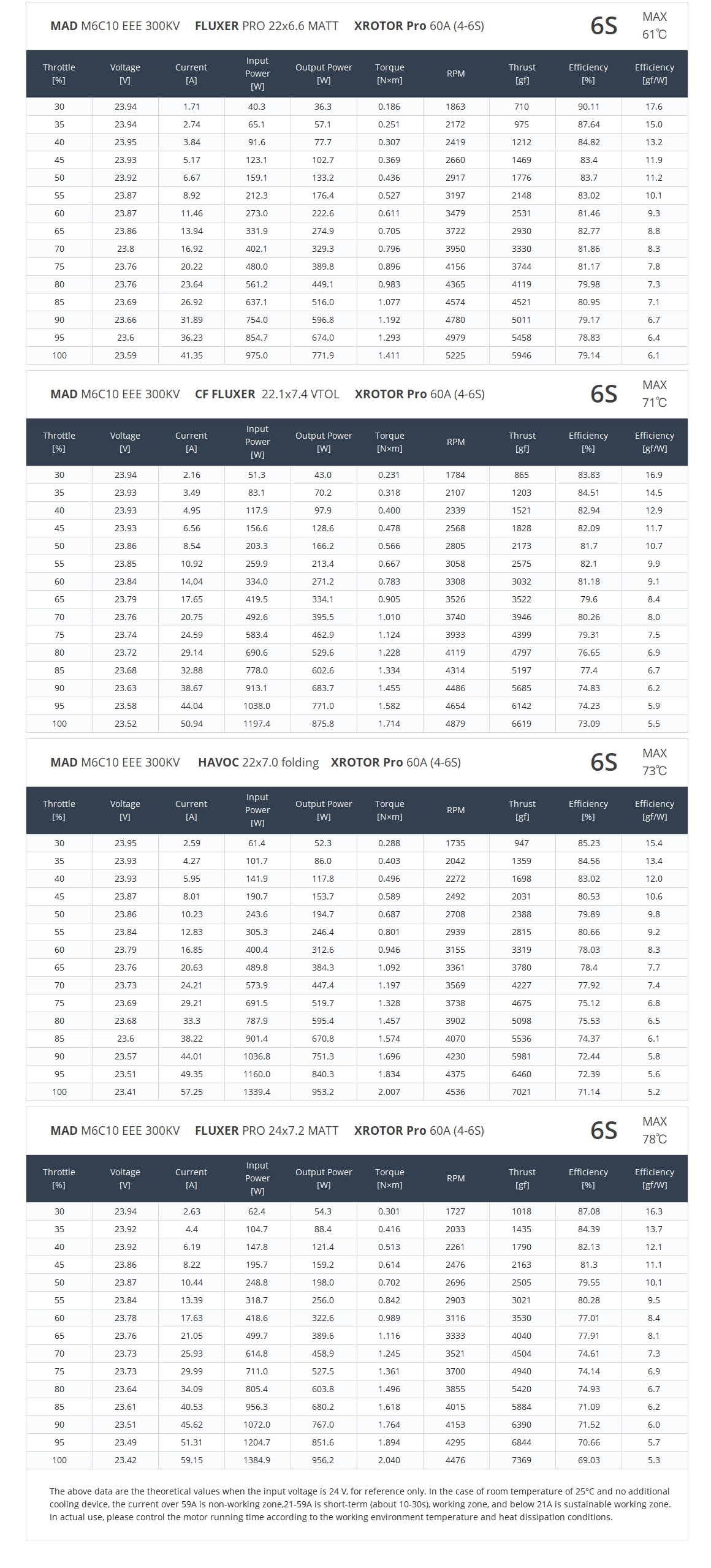

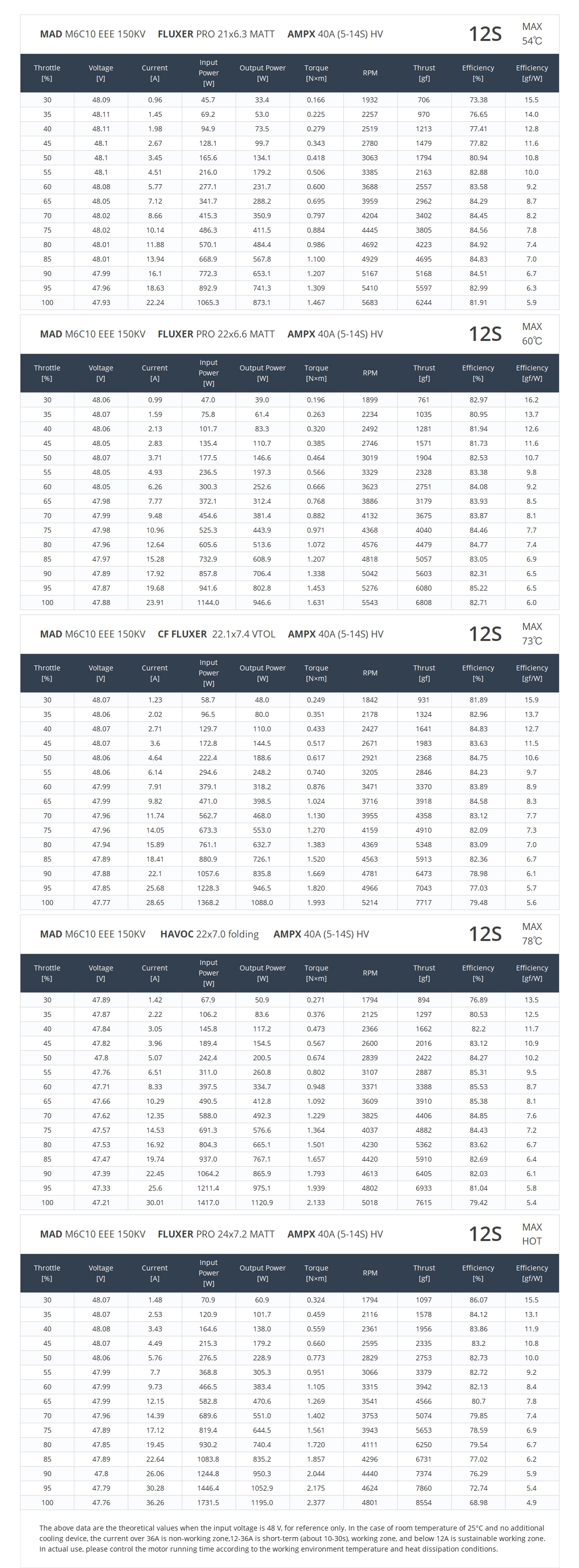

Motor Data
Motor Model MAD M6C10 EEE V2.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:72 × 31.4 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 60 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4,D:18 M3×4,D:22 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:25 M3×4, D:32 M4×4
Bearing 696ZZ*2 Disruptive test 500 V

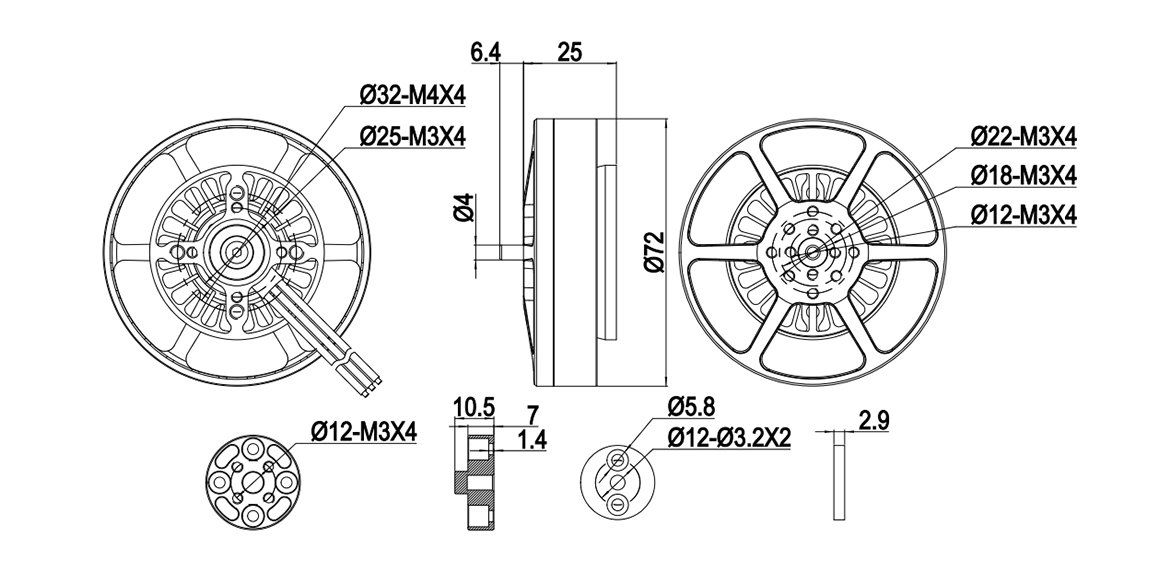

Drawing and mount holes

___________________________________________________________________________________________________________________________

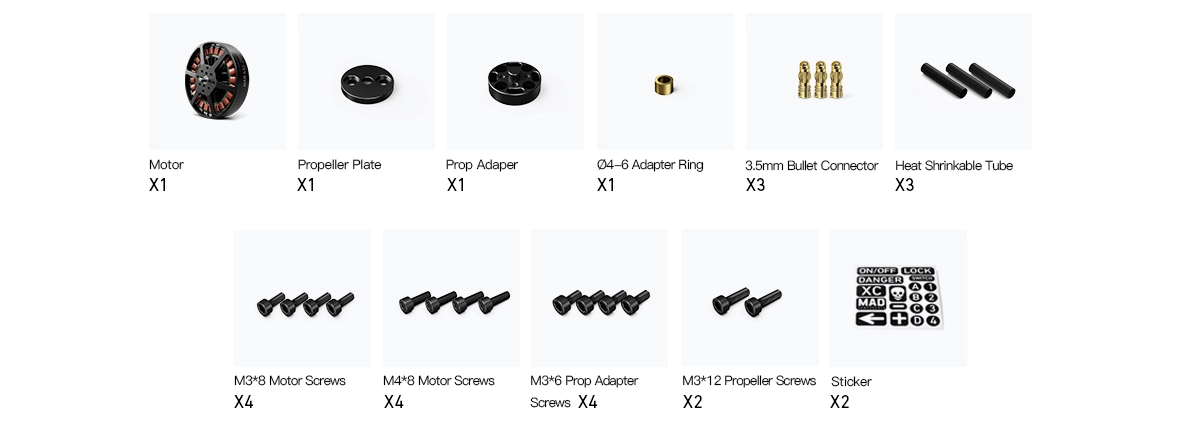

Accessories
