Antimatter M6C18 IPE V3 Drone Motor

Артикул 3289
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
10 472 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
170KV
Опис
  • 170KV

About the Antimatter M6C18 IPE V3 Brushless Drone Motor

Explore the MAD Antimatter M6C18 IPE V3 for your multirotor propulsion project. The listed 170KV version provides a defined starting point for matching the motor to your battery, ESC and propeller.

Key specifications for your build

  • KV options: 170KV.
  • Motor dimensions: D:72 × 41.4 mm. Check the drawing below for installation clearance.
  • Protection: IP45.
  • Motor leads: 150 mm 16# Awg(Black) silicone.

Select a complete propulsion setup

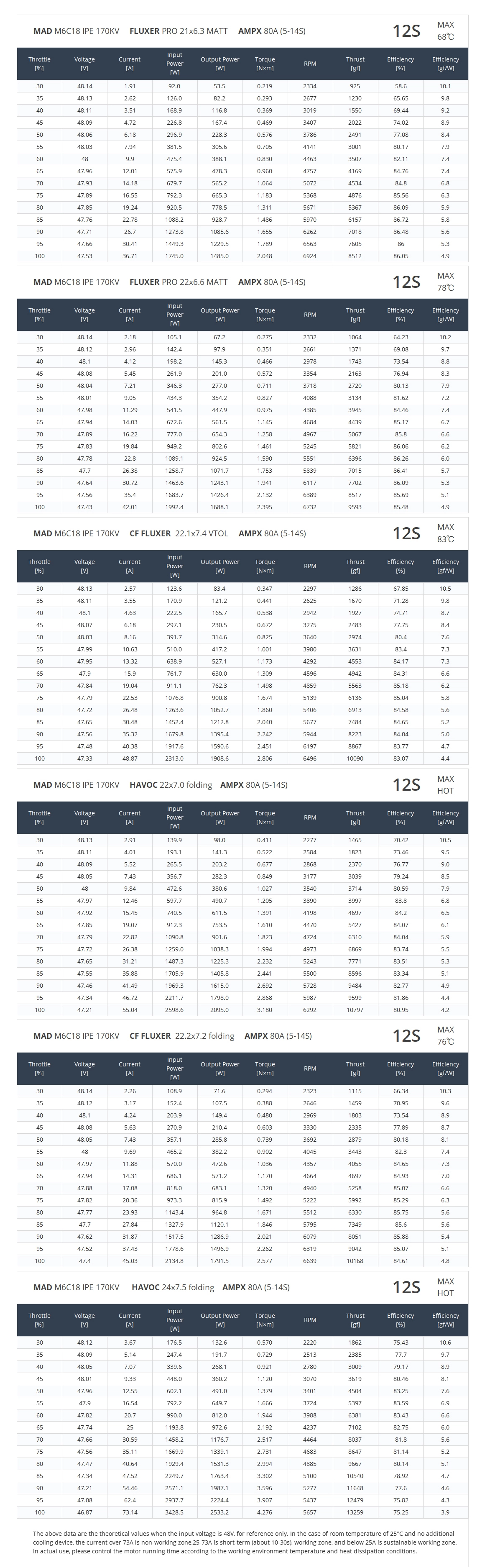

Match the selected KV version with a suitable battery voltage, ESC and propeller. Assess thrust and current using the test data for that exact combination; KV alone does not determine payload capacity or flight time. Check the motor and propeller mounting patterns before installation.

Compare other AN M6 series motors or explore drone ESCs and propellers to plan your system.

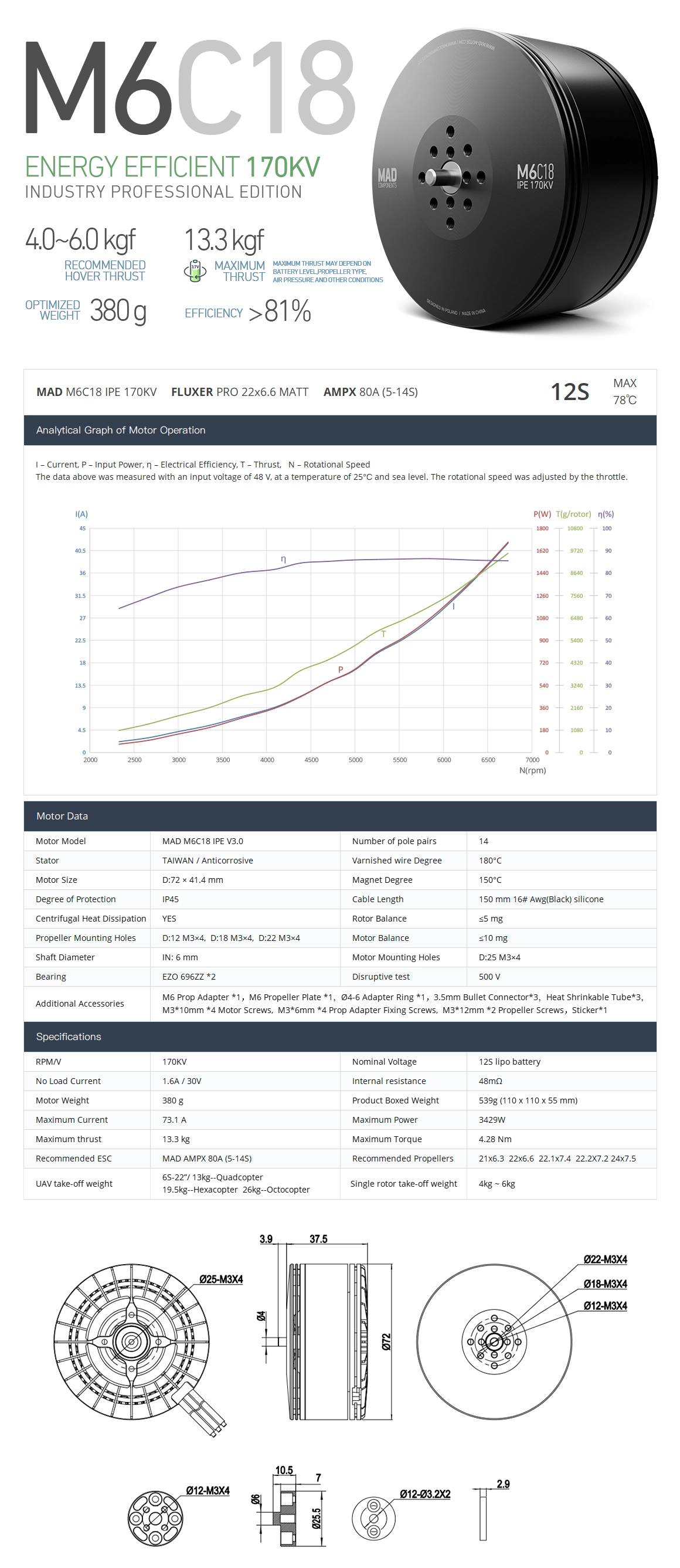

Motor Data
Motor Model MAD M6C18 IPE V3.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:72 × 41.4 mm Magnet Degree 150°C
Degree of Protection IP45 Cable Length 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4, 18 M3×4, 22 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 6 mm Motor Mounting Holes D:25 M3×4
Bearing 696ZZ *2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

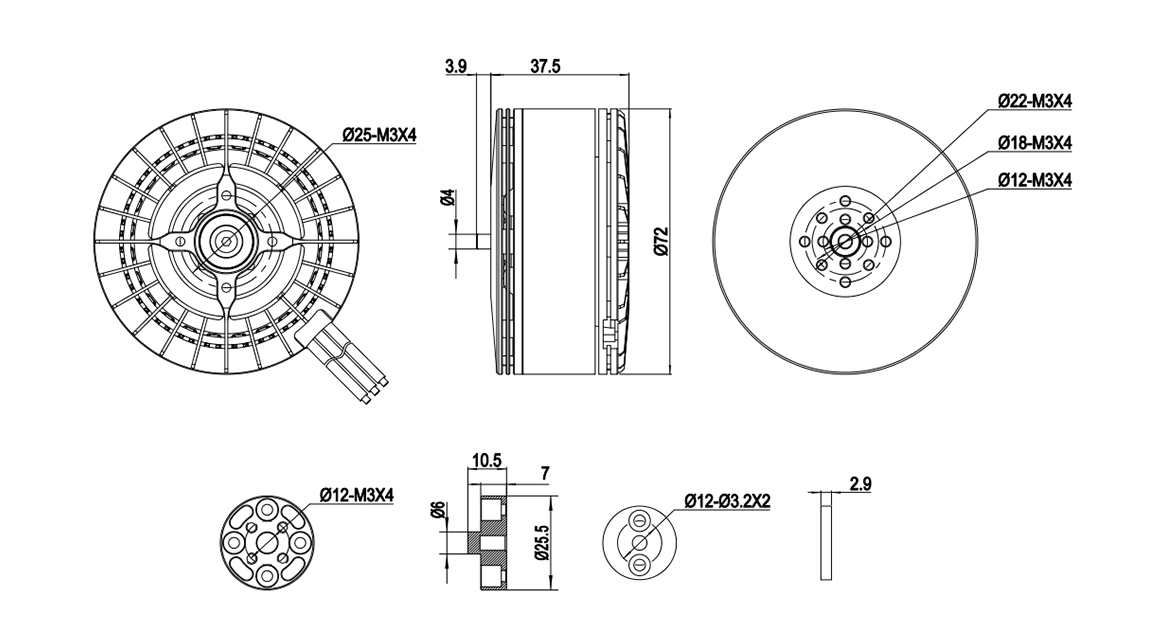

Drawing and mount holes

___________________________________________________________________________________________________________________________

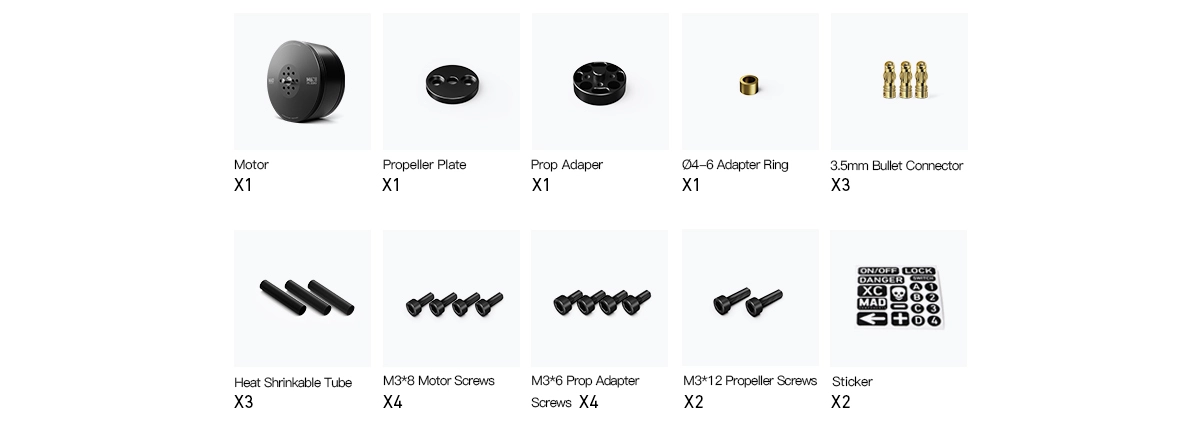

Accessories
