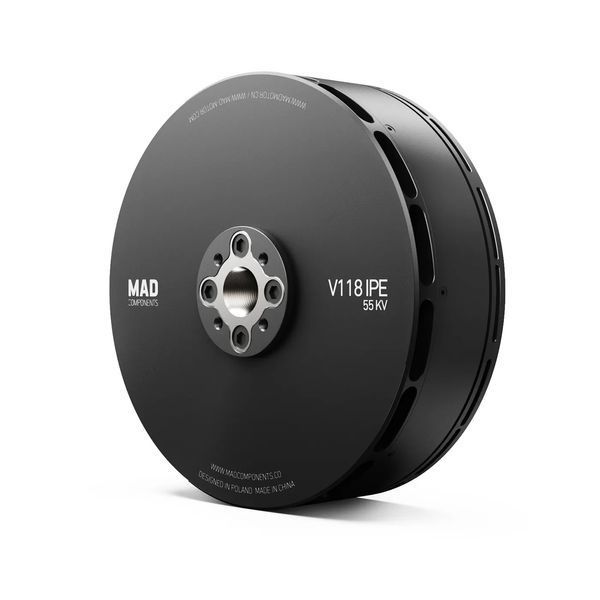

V118 EVTOL UAV Drone Motor

Артикул 3319
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
39 722 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
55KV
Опис
  • 55KV-24S
  • Solution

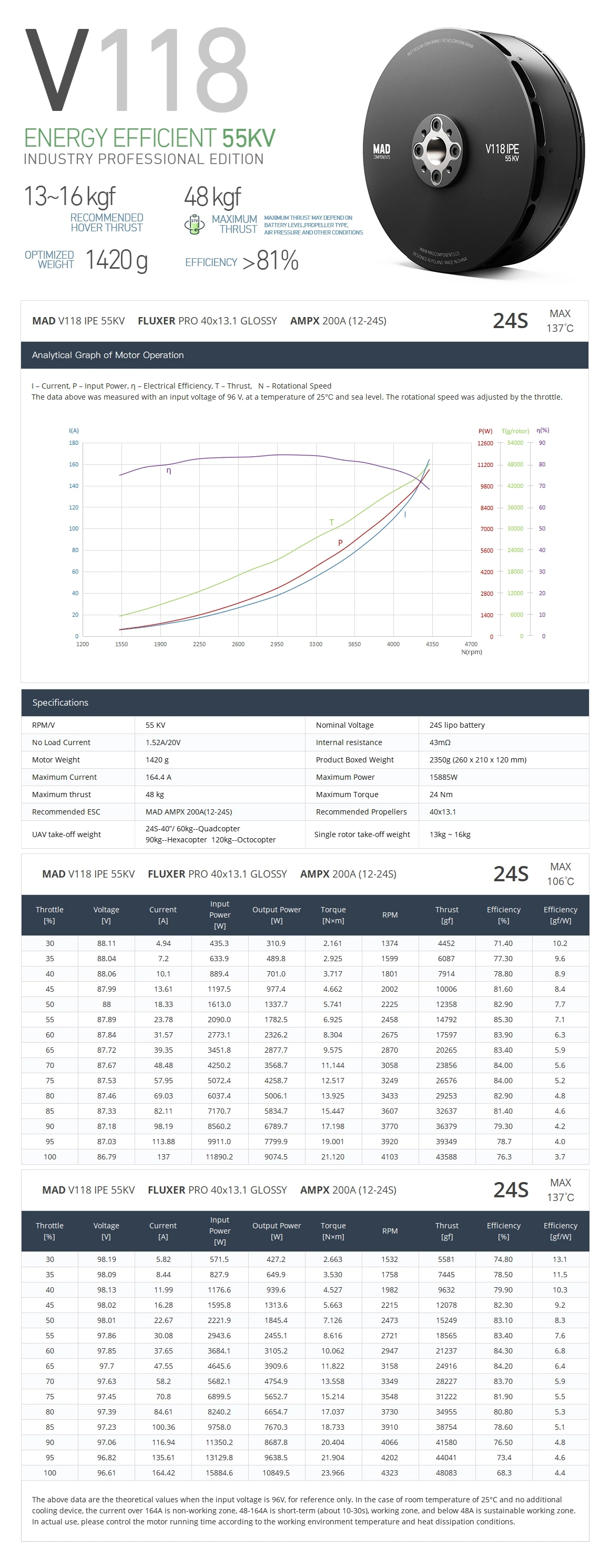

Motor Data

Motor Model MAD V118 IPE V2.0 Number of pole pairs 19
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:144.2 × 49 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:30 M4×4 Motor Balance ≤20 mg
Shaft Diameter IN: 20 mm Motor Mounting Holes D:50 M6×4
Bearing 6904ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

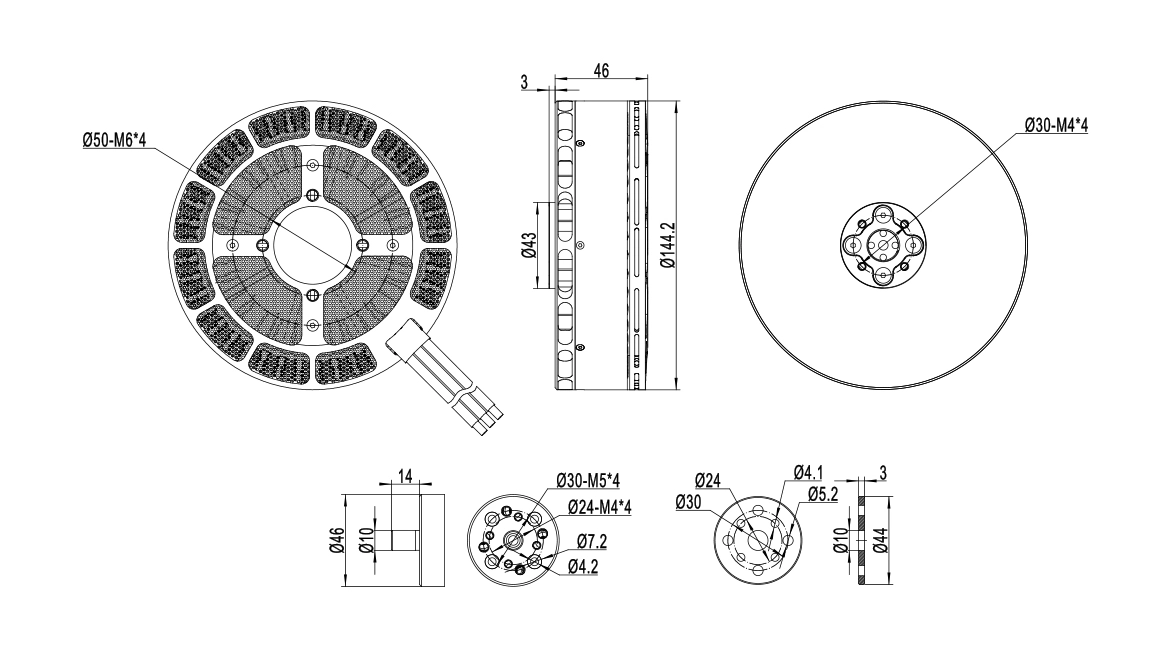

Drawing and mount holes

___________________________________________________________________________________________________________________________

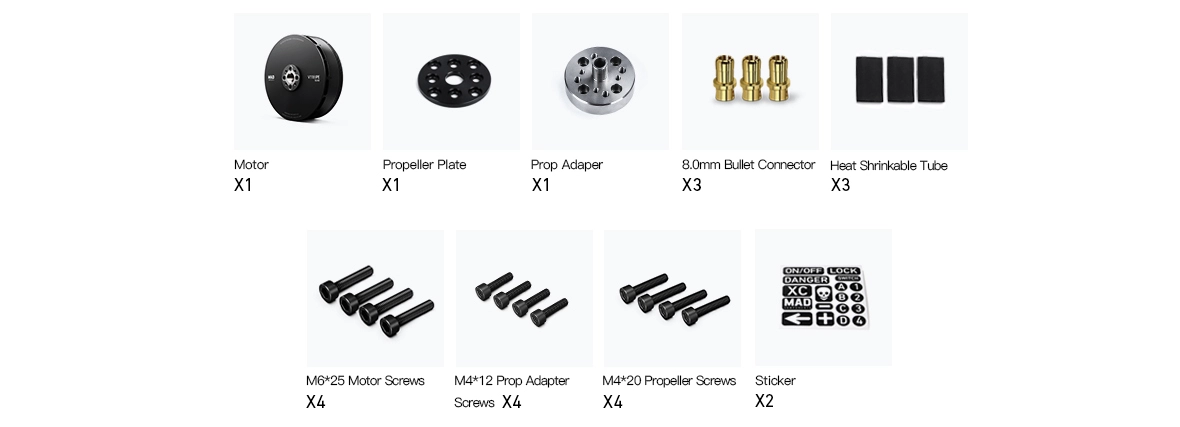

Accessories

SOLUTION
VTOL Motor/KV VTOL Prop VTOL ESC
MAD V118 IPE 55KV Fluxer VTOL 40x13.1 MAD AMPX 200A(12-24S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 rotors)
24S(4.3V/S)/84-104V 13kg ~ 16kg 60kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
