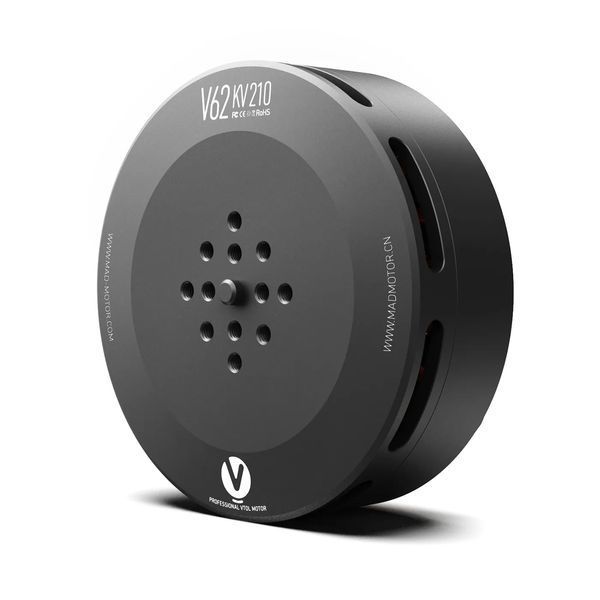

V62 eVTOL Drone Motor

Артикул 3334
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
7 488 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
210KV
Опис
  • 210KV
  • 280KV
  • Solution

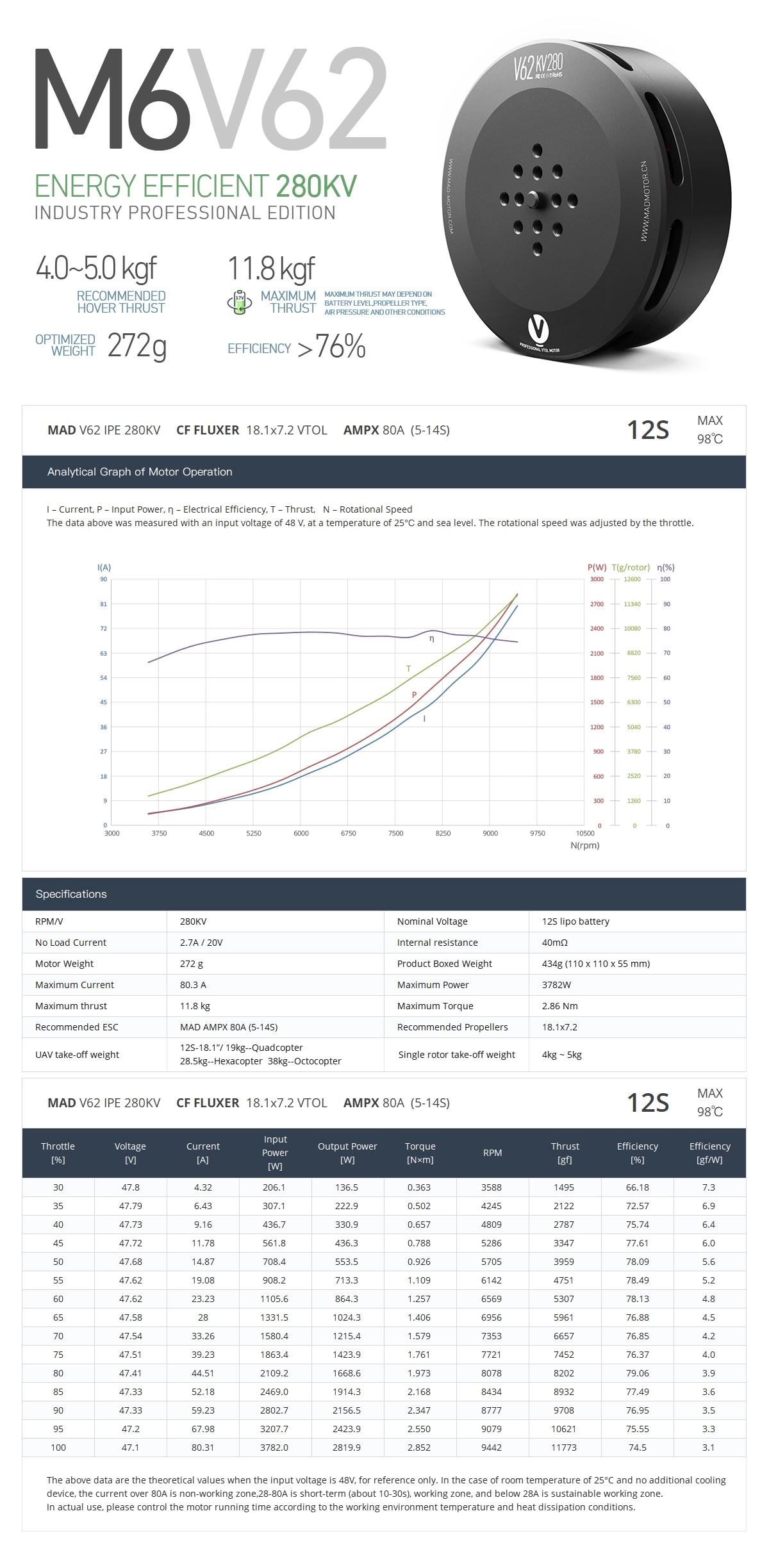

Motor Data

Motor Model MAD V62 IPE V1.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:72 × 33.5 mm Motor Balance 150°C
Degree of Protection IP35 Cable Length 80mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4, 18 M3×4, 22 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 12 mm Motor Mounting Holes D:25 M3×4, D:30 M3×4
Bearing 6801ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

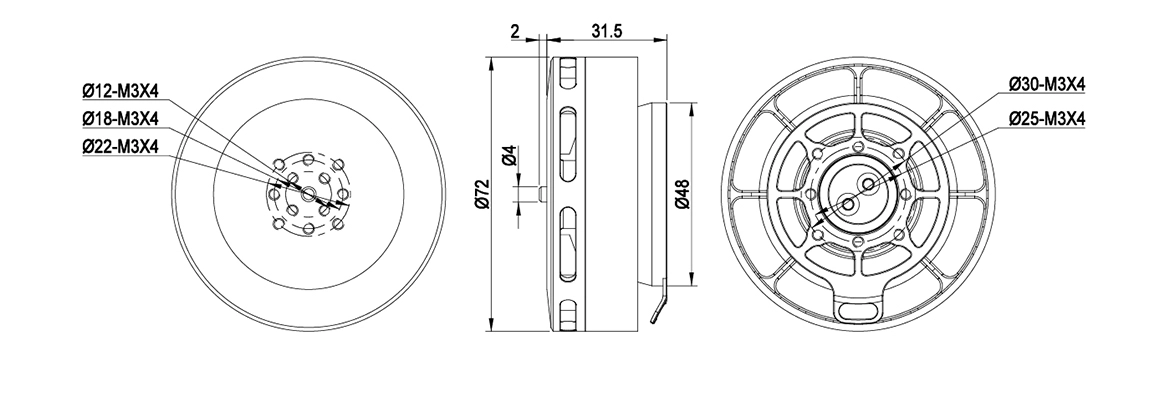

Drawing and mount holes

___________________________________________________________________________________________________________________________

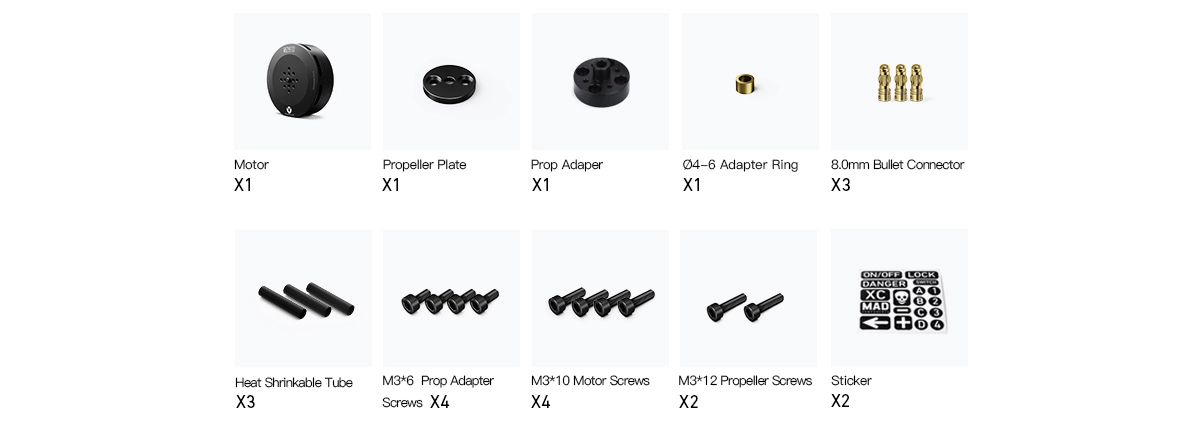

Accessories

SOLUTION
VTOL Motor/KV VTOL Prop VTOL ESC
V62 210KV Fluxer VTOL 22.1x7.4 MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)=/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight
12S(4.3V/S)/42-52V 4kg~6kg 20kg
Note.For a coaxial configuration, a total thrust loss of 25% should be considered.
SOLUTION 2
VTOL Motor/KV VTOL Prop VTOL ESC
V62 280KV  FLUXER VTOL 18.1X7.2 MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)=/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight
12S(4.3V/S)/42-52V 4kg~5kg 19kg
Note.For a coaxial configuration, a total thrust loss of 25% should be considered.
