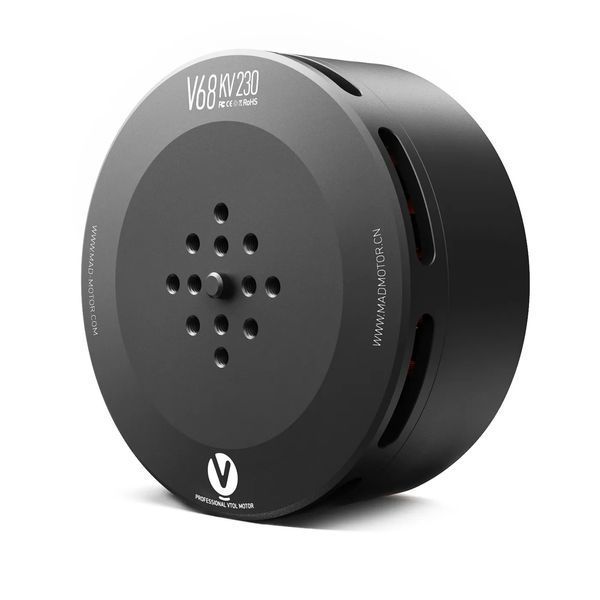

V68 IPE EVTOL Drone motor

Артикул 3335
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
10 472 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
230KV
Опис
  • 230KV
  • Solution

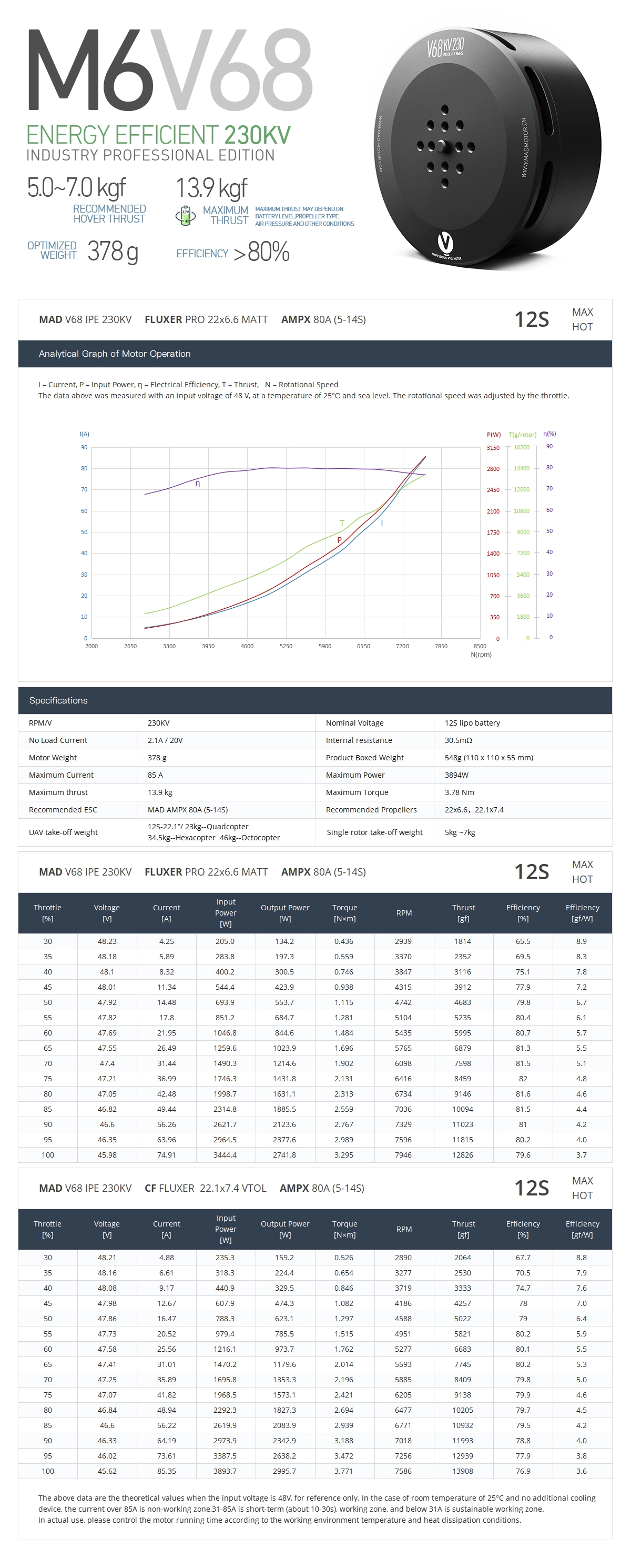

Motor Data

Motor Model MAD V68 IPE V1.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 150°C
Motor Size D:72 × 39.5 mm Motor Balance 150°C
Degree of Protection IP35 Cable Length 80mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤5 mg
Propeller Mounting Holes D:12 M3×4, 18 M3×4, 22 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 12 mm Motor Mounting Holes D:25 M3×4, D:30 M4×4
Bearing 6801ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

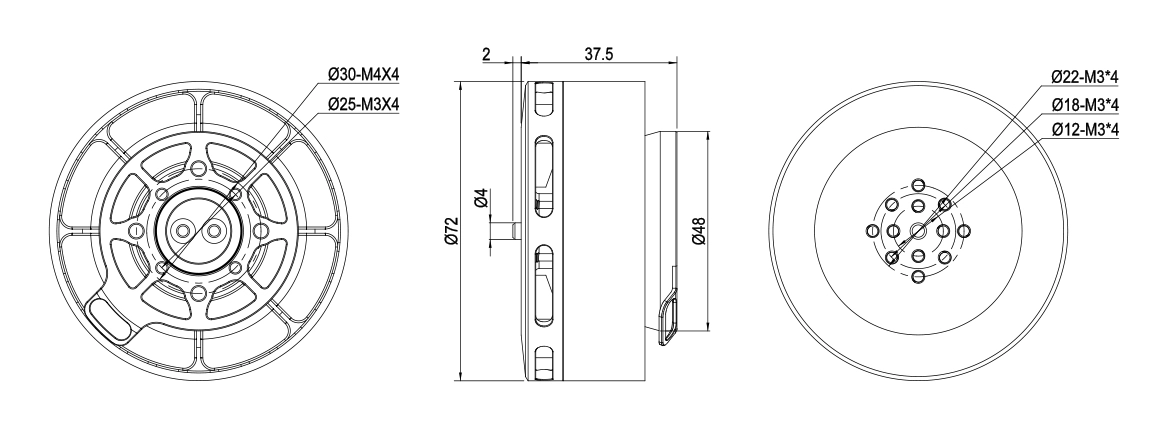

Drawing and mount holes

___________________________________________________________________________________________________________________________

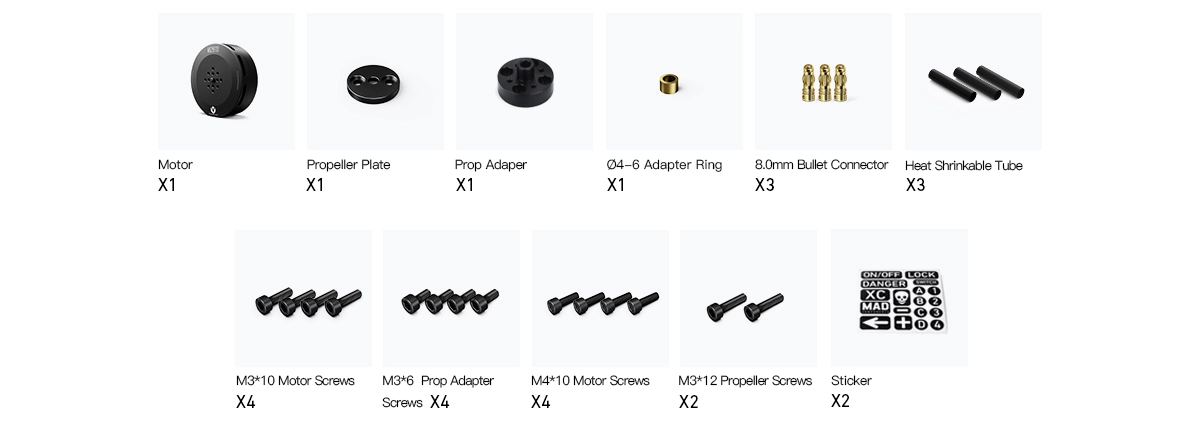

Accessories

SOLUTION
VTOL Motor/KV VTOL Prop VTOL ESC
V68 230KV FLuxer VTOL 22x6.6/22.1x7.4 MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 rotors)
12S(4.3V/S)/42-52V 5kg ~ 7kg 23kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
