V8013 EEE eVTOL Drone Motor

Артикул 3340
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
15 152 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Поширити у соцмережах
Характеристики
Опція
135KV
Опис
  • 135KV
  • 150KV
  • 170KV
  • Solution

Motor Data

Motor Model MAD V8013 EEE V1.0 Number of pole pairs 14
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:88.5 × 36.3 mm Magnet Degree 150°C
Degree of Protection Rain protection Cable Length 150 mm 14# Awg(Black) silicone
Centrifugal Heat Dissipation Independent Rotor Balance ≤5 mg
Propeller Mounting Holes D:20 M3×4, D:25 M3×4 Motor Balance ≤10 mg
Shaft Diameter IN: 12 mm Motor Mounting Holes D:40 M4×4
Bearing 6901ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

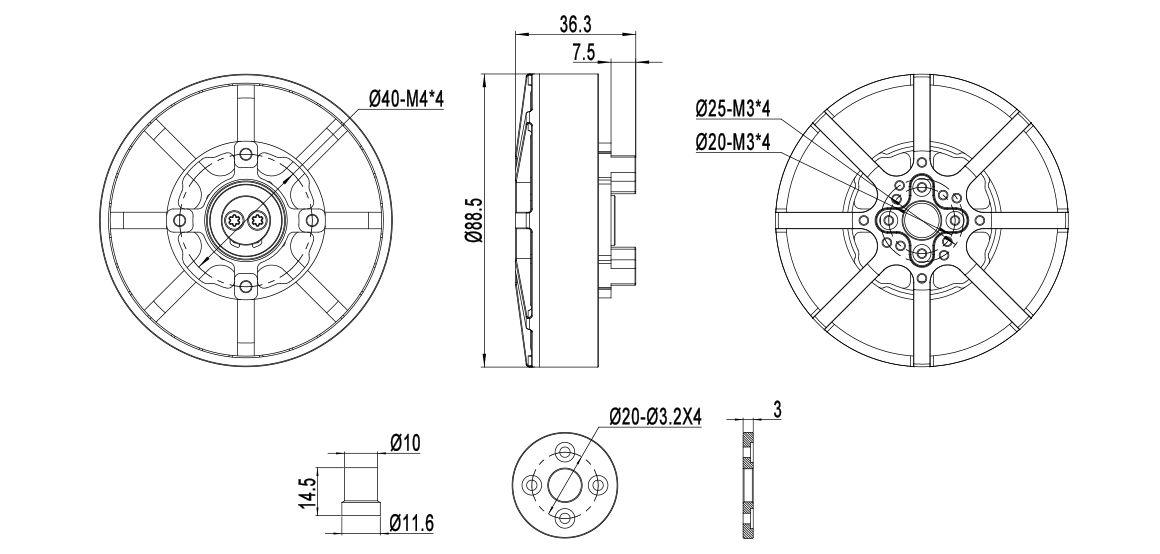

Drawing and mount holes

___________________________________________________________________________________________________________________________

Accessories

VTOL Motor/KV VTOL Prop VTOL ESC
V8013 130KV Fluxer VTOL 26x7.8/27x8.1/28x8.4in MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 rotors)
12S(单节4.3V)/42-52V 4.5kg ~ 6.5kg 22kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
SOLUTION 2

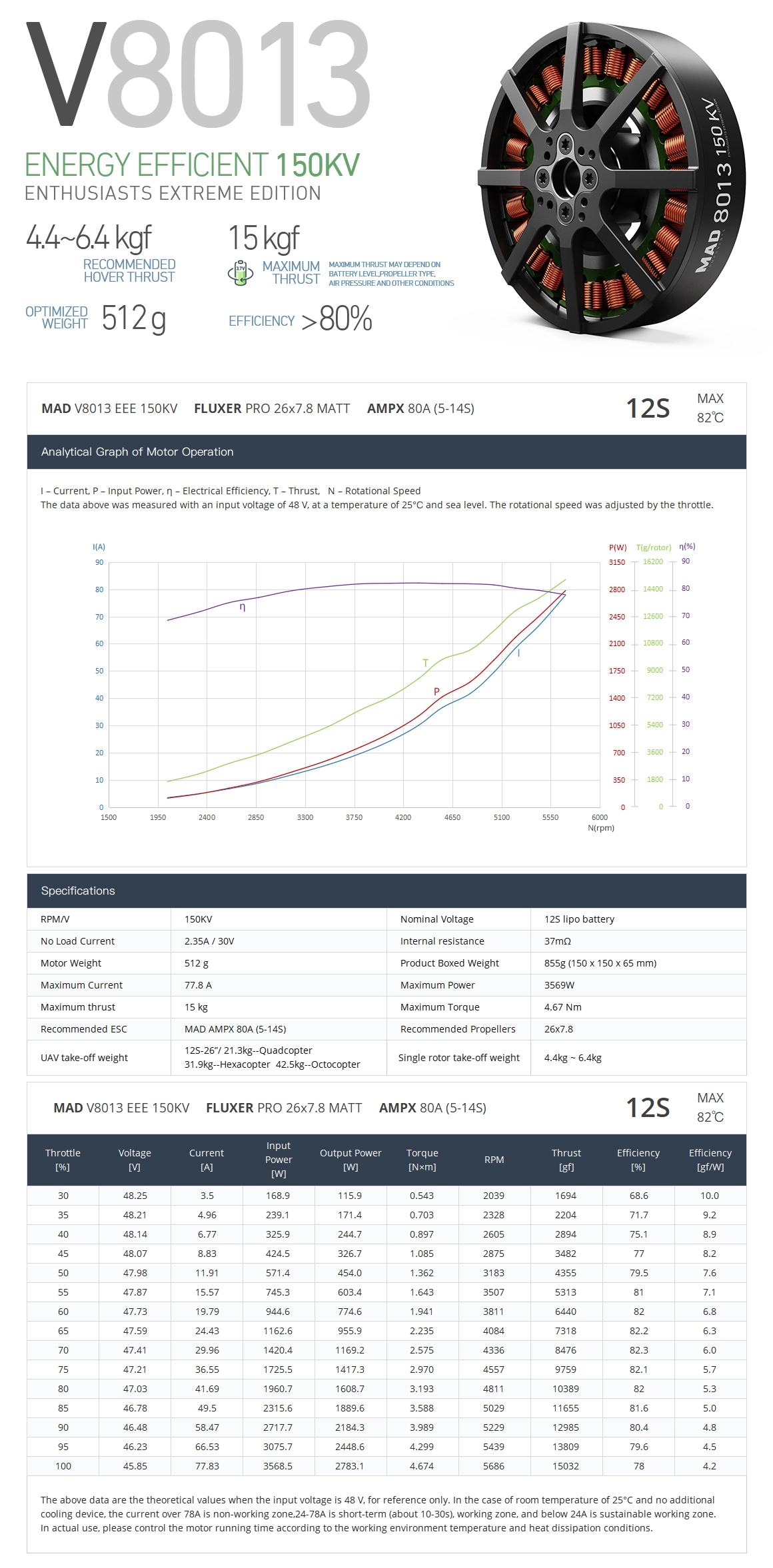

VTOL Motor/KV VTOL Prop VTOL ESC
V8013 150KV Fluxer Vtol 26x7.8in MAD AMPX 80A (5-14S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 rotors)
12S(单节4.3V)/42-52V 4.5kg ~ 6.5kg 21kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
SOLUTION 3

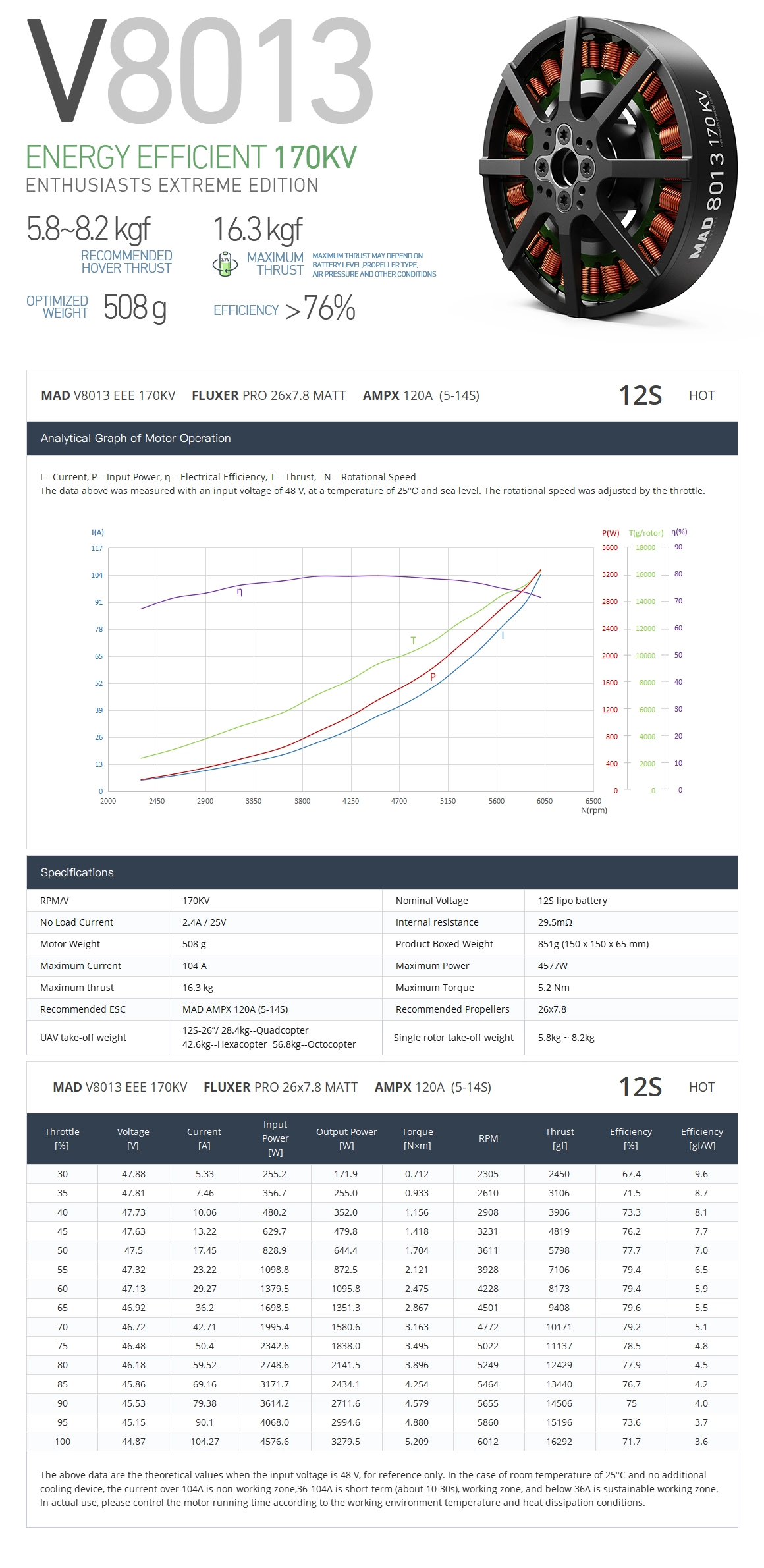

VTOL Motor/KV VTOL Prop VTOL ESC
V8013 170KV Flxuer Vtol 26x7.8in MAD AMPX 120A (5-14S)
VTOL Battery(Lipo)/Voltage VTOL Thrust Per Motor(kg) The recommended takeoff weight(4 axes)
12S(单节4.3V)/42-52V 6kg ~ 8kg 28kg
Note:For a coaxial configuration, a total thrust loss of 25% should be considered.
