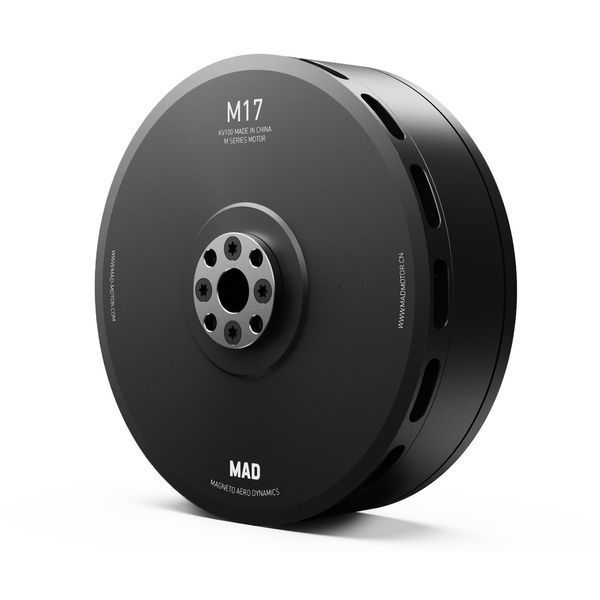

M17 IPE V1.1 Drone Motor

Артикул 3374
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
21 002 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
100KV
Опис
  • 100KV
  • 110KV

About M17 IPE V1.1

Positioning:
• Optimized for use with 32–36 inch carbon fiber propellers
• Built for maximum thrust-to-weight ratio in demanding industrial UAV applications

Key Features:
✔ Peak thrust up to 28.8 kg per axis
✔ Rated thrust: 7–9 kg
✔ Ultra-lightweight for its class: 860g
✔ Compatible with 12S voltage systems

Perfect for:
• Heavy-lift drones in logistics, firefighting, or industrial inspection
• UAVs requiring extreme thrust with weight efficiency
• Builders aiming for stable power output on high-payload aerial platforms

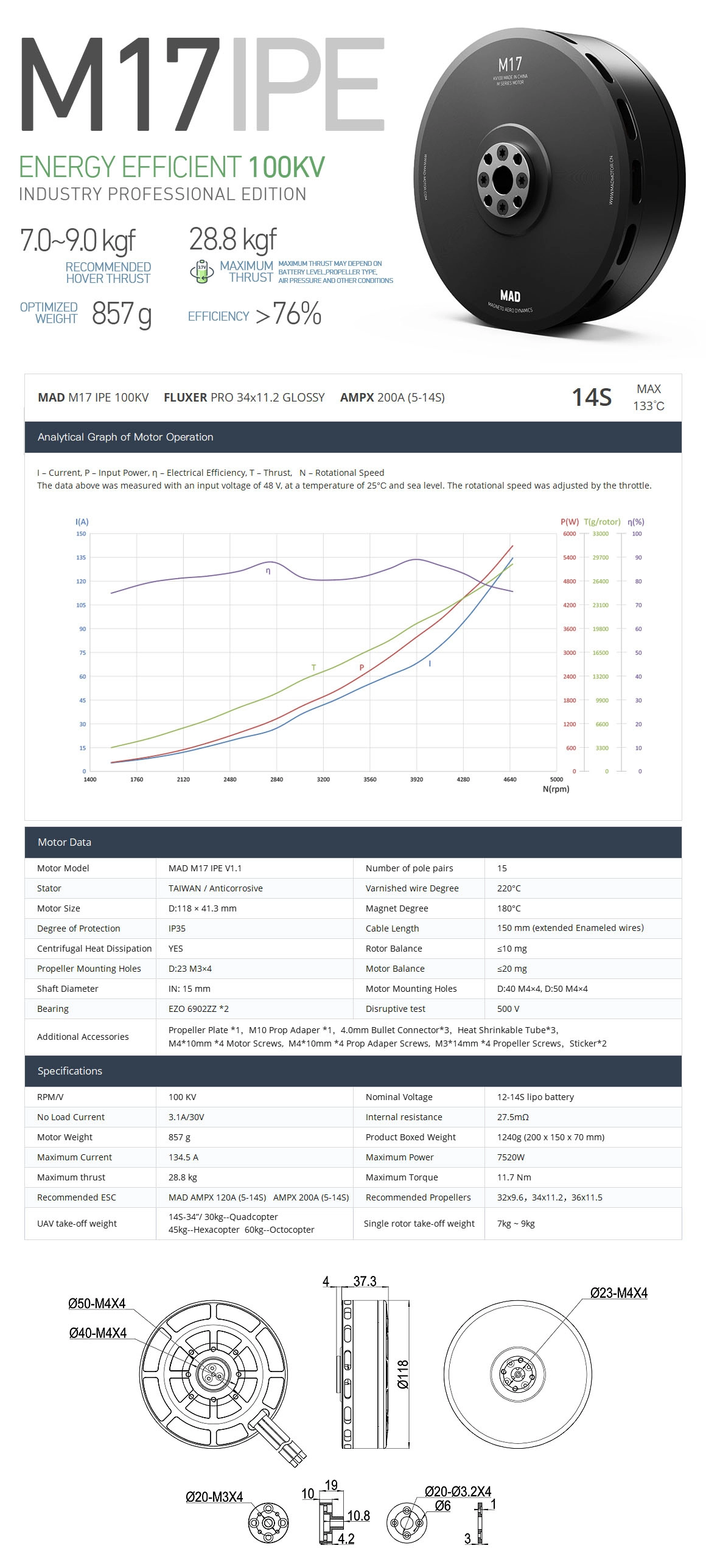

Motor Data

Motor Model MAD M17 IPE V1.1 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:118 × 41.3 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:23 M3×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:40 M4×4, D:50 M4×4
Bearing 6902ZZ *2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

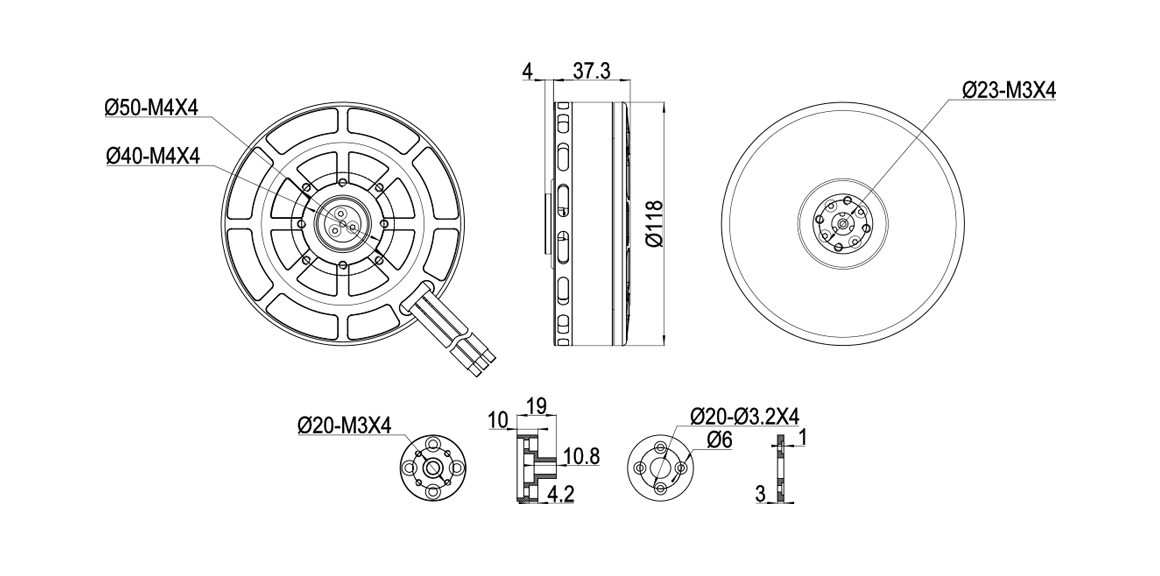

Drawing and mount holes
___________________________________________________________________________________________________________________________

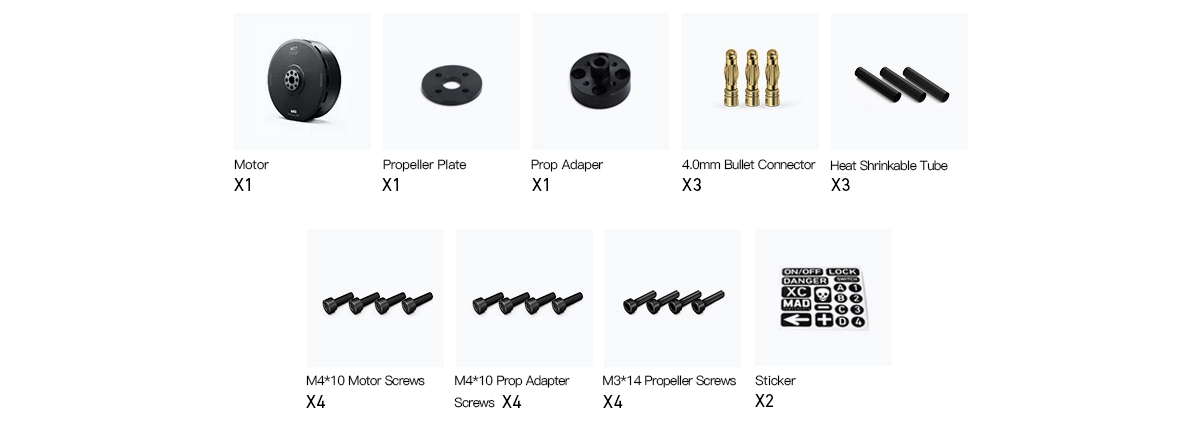

Accessories
