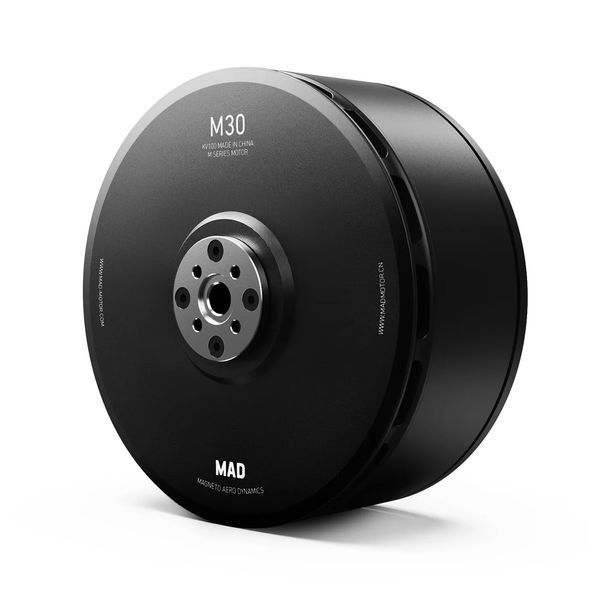

M30 Pro IPE Drone Motor

Артикул 3378
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
40 307 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
80KV
Опис
  • 100KV

About M30 IPE PRO V1.0

Positioning:
• Heavy-class motor tailored for 12–15 kg single-axis payloads
• Built for industrial UAV platforms requiring extreme thrust and reliability
• Optimized for 40x13.1 inch carbon fiber prop, fluxer vtol 40.1x16 inch propeller

Key Features:
✔ Peak thrust: 45.2 kgf | Rated thrust: 12–15 kgf
✔ Ultra-lightweight for its class: 1630g
✔ Supports 12S voltage systems
✔ Compatible with AMPX ESC 200a 5-14s, AMPX ESC 300a (5-14s)
✔ Maximized thrust-to-weight ratio for heavy-lift, long-endurance flight

Perfect for:
• Industrial drones in logistics, VTOL, or firefighting operations
• Large multirotor platforms requiring exceptional power and propeller flexibility
• UAV builders seeking maximum performance with 40-inch prop compatibility

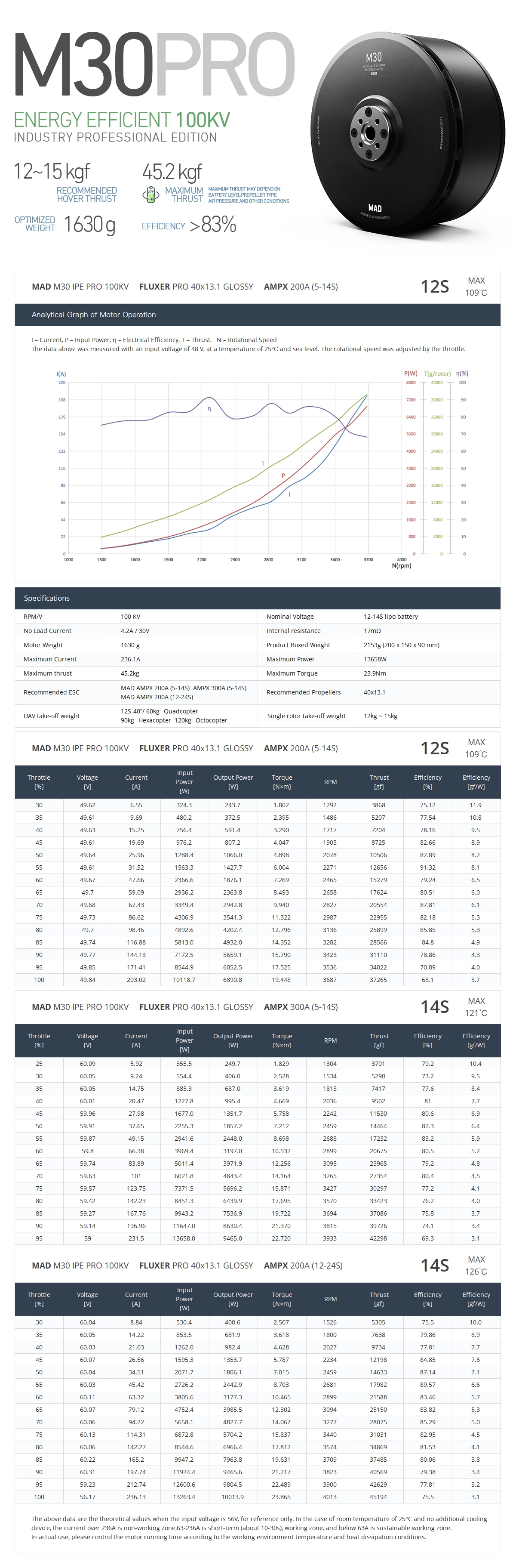

Motor Data

Motor Model MAD M30 IPE PRO V1.0 Number of pole pairs 15
Stator Anticorrosive Varnished wire Degree 220°C
Motor Size D:122 × 59 mm Magnet Degree 180°C
Degree of Protection IP35 Cable Length 150 mm (extended Enameled wires)
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:31 M4.2×4 D:24 M4.2×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:50 M4×4
Bearing HR30202J / 3202A-2RZTN Disruptive test 500 V

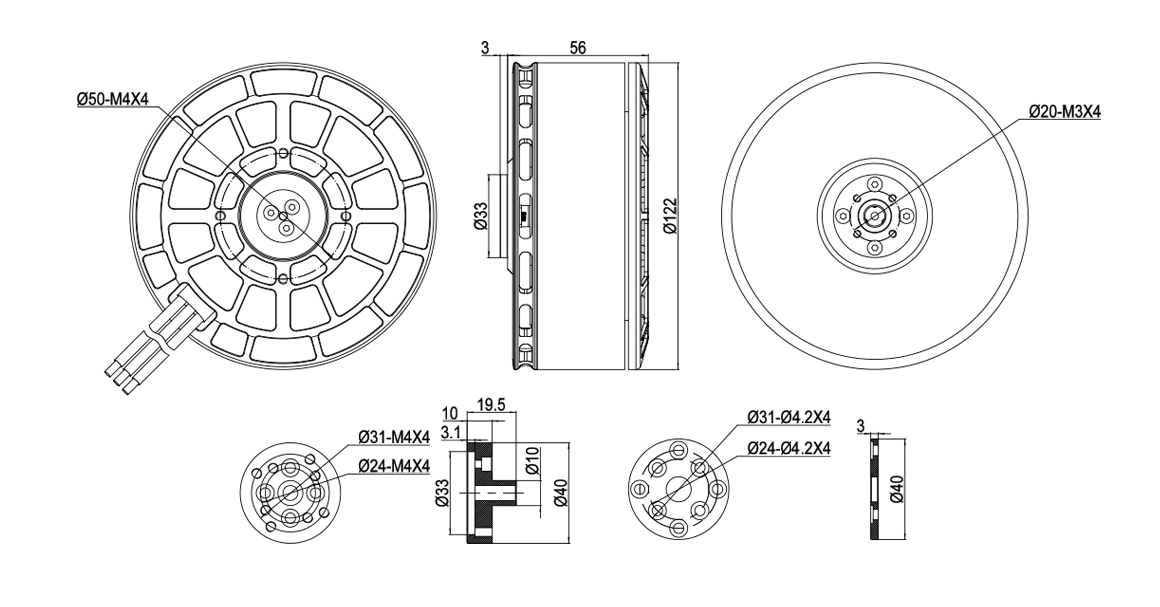

Drawing and mount holes

___________________________________________________________________________________________________________________________

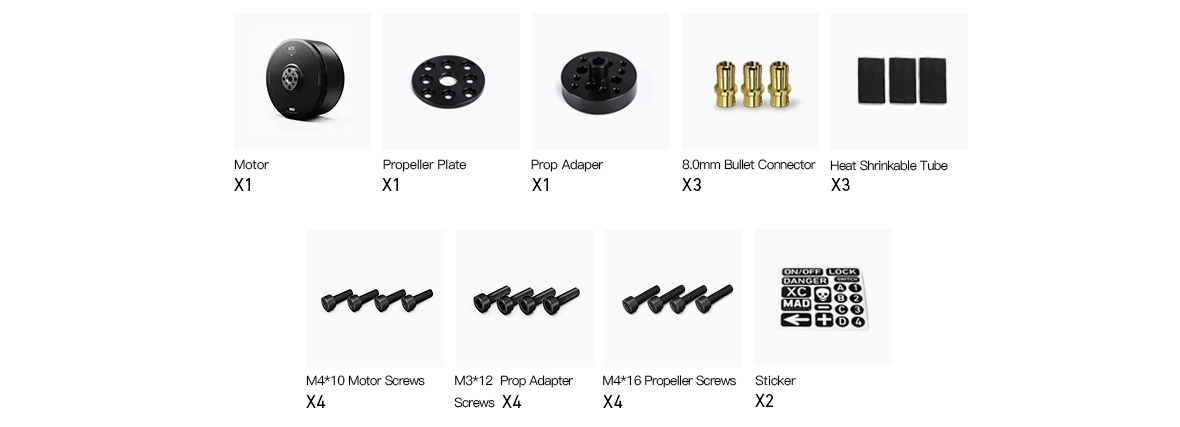

Accessories
