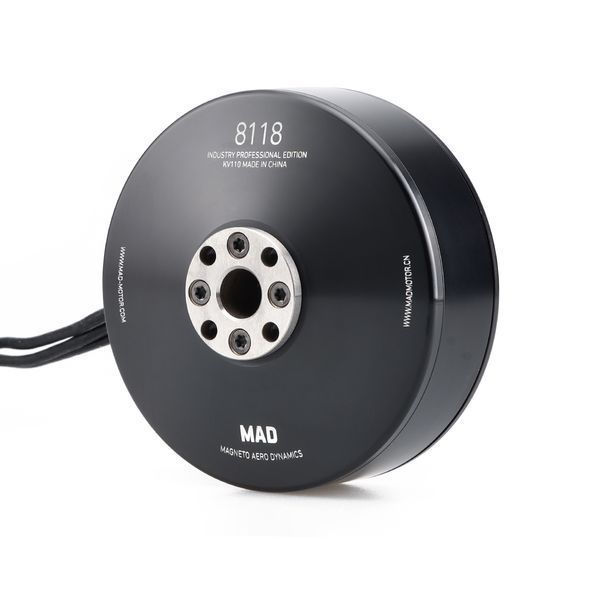

Двигун для дрону 8118 IPE Drone Motor

Артикул 4045
Під замовлення
Новий відгук або коментар
Увійти за допомогою
Оцініть товар
15 620 грн
Увійдіть на сайт щоб
додати товар в список бажань
%
Увійти для відображення накопичувальної знижки
Опція
Поширити у соцмережах
Характеристики
Опція
80KV
Опис
  • 100KV

About 8118 IPE V1.0

Positioning:
• A legacy high-power motor designed for 4.5–7.5 kg single-axis loads.
• Engineered to deliver both the efficiency of the 8108 series and significantly greater thrust.
• Once favored in aerial platforms with 30–32 inch props, now commonly adopted in robotic arm systems.

Key Features:
✔ Delivers up to 17.5 kg maximum thrust per axis with large carbon fiber props.
✔ 660g single motor weight ensures a balance between strength and manageable payload.
✔ Reliable structure ideal for industrial-grade motion systems and experimental builds.

Perfect for:
• Robotic arm designs requiring high torque and stability.
• Legacy platform users transitioning to M9C12 100KV or 90KV for enhanced performance.

Motor Data

Motor Model MAD 8118 IPE V1.0 Number of pole pairs 20
Stator Anticorrosive Varnished wire Degree 180°C
Motor Size D:88.6 × 41 mm Magnet Degree 150°C
Degree of Protection IP35 Cable Length 150 mm 16# Awg(Black) silicone
Centrifugal Heat Dissipation YES Rotor Balance ≤10 mg
Propeller Mounting Holes D:23 M4×4 Motor Balance ≤20 mg
Shaft Diameter IN: 15 mm Motor Mounting Holes D:30 M3×4, D:32 M4×4, D:50 M3×4
Bearing 6802ZZ*2 Disruptive test 500 V

___________________________________________________________________________________________________________________________

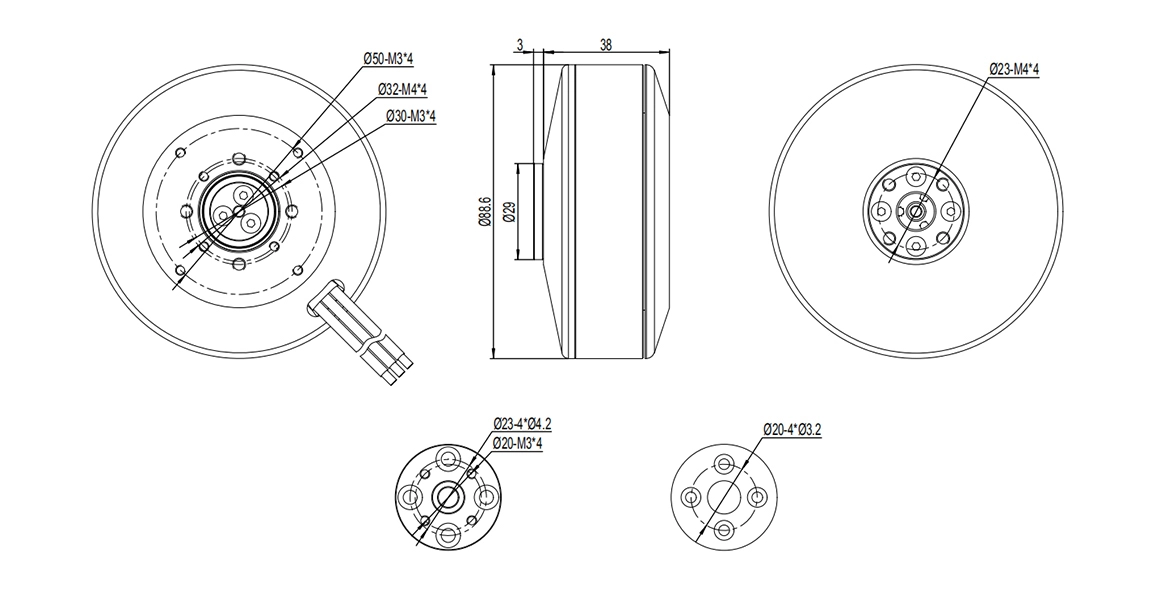

Drawing and mount holes

___________________________________________________________________________________________________________________________

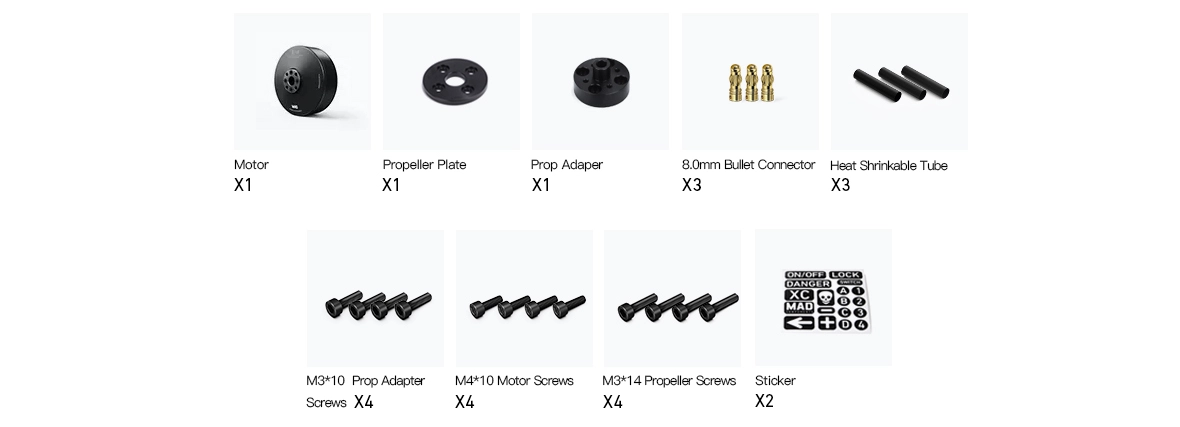

Accessories
